Product Details
Place of Origin: China
Brand Name: JingSu ShengMan
Certification: CE and ISO9001
Model Number: LDH
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: USD20000-USD300000
Packaging Details: Plywood Cases
Delivery Time: 60-90days
Payment Terms: L/C, T/T
Supply Ability: 10sets
Condition: |
New |
Warranty: |
1 Year |
Voltage: |
Customized |
Machine Type: |
Mixer |
Heating System: |
Steam,Electronic,oil |
Standard: |
GMP |
Material: |
Stainless Steel |
Dimension: |
Requirement From Customer |
Application: |
Pharmaceutical, Food, Chemical |
Power: |
0.37-11kw |
Condition: |
New |
Warranty: |
1 Year |
Voltage: |
Customized |
Machine Type: |
Mixer |
Heating System: |
Steam,Electronic,oil |
Standard: |
GMP |
Material: |
Stainless Steel |
Dimension: |
Requirement From Customer |
Application: |
Pharmaceutical, Food, Chemical |
Power: |
0.37-11kw |

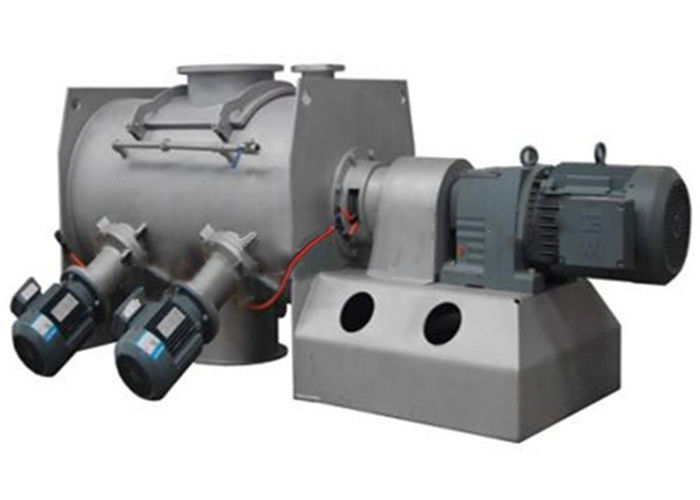

High quality button control LDH Series Coulter Mixer for chemical industry
Introduction
This machine is composed of transmission device,horizontal cylinder, coulter, and fly cutter. The raw material flows circumferentially along the cylinder and it will be tossed and sprinkled under action of the high speed rotating cutler. Therefore, the material can be evenly mixed in a shorter time.
Detailed Information
1. Volume: 500-20000L
2. Contact Material: SS304, SS316L
3. Usage: Pharmaceuticals, pesticides, pigment, paint, dyestuff, building material, refractory material, foodstuff, food additives, milk powder, compound fertilizer, fodder, plastic, cosmetics etc.
4. Product type: Mixer
5. Function: Mixing
6. Mixing type: Colter/plow
7. Color: Customized
8. Motor power: Customized
9. Volt: 220V, 380V, or customized
10. Discharge mode: Pneumatic large door structure, manual butterfly valve or pneumatic butterfly valve
11. Condition: New
12. Dimension: Customized
13. Weight: Customized
14. Certificate: CE ISO
15. Warranty: 1 year
16. After-sales servie: Video technical support, online support.
Technical Parameters
| Type | one time mixing(kg) | Power(KW) | Weight(kg) |
| LDH-0.1 | 40-60 | 3.7 | 430 |
| LDH-0.3 | 120-180 | 7.7 | 950 |
| LDH-0.5 | 200-300 | 8.5 | 1100 |
| LDH-1 | 400-600 | 15.5 | 1800 |
| LDH-2 | 800-1200 | 23 | 2520 |
| LDH-4 | 1600-2400 | 28 | 3220 |
| LDH-6 | 2400-3600 | 33 | 6750 |
| LDH-8 | 3200-4800 | 37 | 7200 |
| LDH-10 | 4000-6000 | 41 | 7500 |
| LDH-12 | 4000-6000 | 41 | 7500 |
| LDH-10 | 4800-7200 | 48 | 8500 |
| LDH-15 | 6000-9000 | 56 | 9200 |
Note: because the raw material exist in difference, the output in the table is for reference only
Technical advantages
(1) the latest concept of the plough type stirring mechanism of the core technology, plus high-speed rotary cutter head discrete stirring, mixing speed is fast, according to the different formula of the product, the main machine stirring time is 90-180s.
(2) mixing machine mixing precision is high, various materials workability and uniformity is good, do not produce segregation when mixing, mixing ratio can be as high as 1:10,000, to the maximum extent to meet the construction requirements.
(3) unique single door unloading device.No dead zone, no residue, no leakage during unloading, short unloading time.For colored mortar, only simple cleaning or no cleaning is needed when changing the product formula.
(4) with a dynamic artificial sampling mouth, to facilitate the user sampling test, and according to the inspection of the product to adjust the main engine stirring time, to meet the requirements of production.
(5) the cylinder and blade of the main mixing machine adopt imported alloy wear-resistant plate, and the high-speed flying knife adopts wear-resistant alloy casting, which has extremely high wear-resistant performance and prolongs the service life of the main mixing machine.
Applications
This machine is suitable for the mixing of solid-solid (powder and powder), solid-liquid (adding a small amount of liquid into the powder), and some compound technology process such as granulating wet particle and drying. It is especially suitable for mixing viscous material or glue-like additive material.
