Home > PRODUCTS > Industrial Mixing Machine > 100kg/batch 200L Industrial Mixing Machine Trough Mixer For Herbs Powder

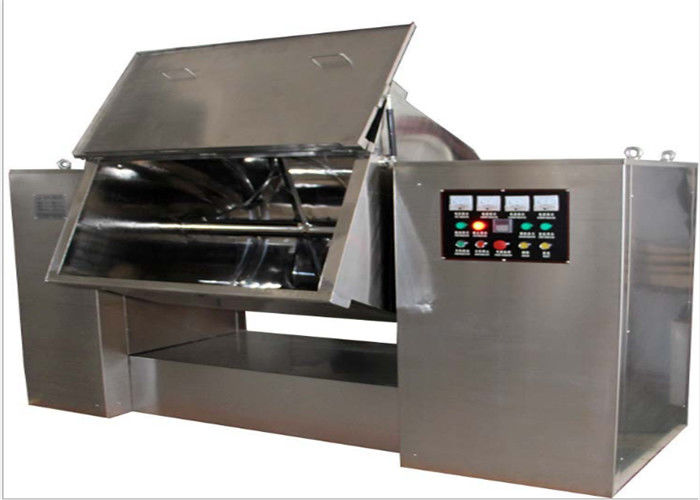

100kg/batch 200L Industrial Mixing Machine Trough Mixer For Herbs Powder

Product Details

Place of Origin: China

Brand Name: JingSu ShengMan

Certification: CE and ISO9001

Model Number: CH

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: USD20000-USD300000

Packaging Details: Plywood Cases

Delivery Time: 60-90days

Payment Terms: L/C, T/T

Supply Ability: 10sets

Get Best Price
Highlight:

200L Industrial Mixing Machine

,

100kg/Batch Industrial Mixing Machine

,

200L Trough Mixer

Condition:
New
Warranty:
1 Year
Voltage:
Customized
Machine Type:
Mixer
Heating System:
Steam,Electronic,oil
Standard:
GMP
Material:
Stainless Steel
Dimension:
Requirement From Customer
Application:
Pharmaceutical, Food, Chemical
Power:
0.37-11kw
Condition:
New
Warranty:
1 Year
Voltage:
Customized
Machine Type:
Mixer
Heating System:
Steam,Electronic,oil
Standard:
GMP
Material:
Stainless Steel
Dimension:
Requirement From Customer
Application:
Pharmaceutical, Food, Chemical
Power:
0.37-11kw
100kg/batch 200L Industrial Mixing Machine Trough Mixer For Herbs Powder

CH High Quality Trough Mixer Slot Shape Herbs Powder Mixing Machine Dry Spices Cumin and Anise Powder Blender







Introduction


The trough type mixer is based on the transmission trough mixer of our company. It has made many improvements to the mixing paddle, sealing and unloading, which makes the operation more convenient and the cleaning is more thorough. More widely used.
Application
1. Mixing of the previous steps in the production of tablets and granules in the pharmaceutical industry.
2. Mixing of the food industry, such as condiments, dairy products, spices, cakes, etc.
3. Mix of feed production.
4. Mixing of powders and liquids in the chemical industry.





100kg/batch 200L Industrial Mixing Machine Trough Mixer For Herbs  Powder 0






Technical Parameters



Model
CH-50
CH-10
CH-200
CH-400
Volume L
50
100
200
400
Capacity kg/batch
25
50
100
200
Mixing motor kW
1.5
3
4
5.5
Discharge kW
0.55
0.55
0.75
1.5
Stirring speed rpm
24
24
24
24
Weight kg
180
300
420
610
Dimensions mm
1200*400*750
1500*500*900
1750*600*1050
2200*700*1150
Note: there may be minor difference from final dimensions; large volume is also available



Note: because the raw material exist in difference, the output in the table is for reference only



100kg/batch 200L Industrial Mixing Machine Trough Mixer For Herbs  Powder 1

Technical advantages





1. This machine uses two motors, a stirring motor, which drives the mixing paddle to rotate the mixture material through the shaft. A discharge motor can be used to tilt the stirring tank to facilitate unloading.

2. There are one-way thrust ball bearings and radial thrust ball bearings at both ends of the stirring shaft to prevent radial turbulence caused by negative stress.

3. The sealing at both ends of the mixing shaft has been improved, and it can be completely sealed without contaminant material.

























100kg/batch 200L Industrial Mixing Machine Trough Mixer For Herbs  Powder 2








Pre-service:
As a good and rich experience supplier, we should offer customer the best quality and best price of the machine.
1. Introduce the suitable product to the customer in detail, answer the question raised by customer carefully.
2. Make the suitabe project as the customer requirement and make sure the machine is suitable for the material.

Sale service:
(1). Ensure product with high quality and pre-commissioning before delivery. (
2). Delivery on time. (3). Provide full set of documents as customer’s requirements.



After-sale service:
Provide considerate services to minimize clients’ worries.

1. Assist clients to prepare for the first construction scheme.
2. Install and debug the equipment.
3. Train the first-line operators.
4. Examine the equipment.
5. Take initiative to eliminate the troubles rapidly.
6. Provide technical support.
7. Establish long-term and friendly relationship.



Service commitment:
1. Provide clients one-year warranty to make sure the machine work well.

2. We always keep certain inventory level of spare parts, which means the replacements can be sent to you timely.

3. Send every client a preferential quotation.



100kg/batch 200L Industrial Mixing Machine Trough Mixer For Herbs  Powder 3

100kg/batch 200L Industrial Mixing Machine Trough Mixer For Herbs  Powder 4





Jiangsu Shengman Drying Equipment Engineering Co.,Ltd, established in 2011, known as a local leading high-tech enterprise, is located in Zhenglu town, Changzhou, Jiangsu, China. Shengman is a large-scale production enterprise in China drying industry with a registered capital of 35,000,000 RMB, specialized in designing &manufacturing various kinds of dryers, granulators, mixers, grinders ,dust removers, etc. Shengman owns an area of over 200,000㎡, and realizes annual sales of over 70,000,000RMB for consecutive years. Shengman has passed European Union CE authentication, ISO 9001 quality management system certification and got good bank credit for AAA. Now Shengman has been one of the largest drying equipment production enterprises in East China and keeping leading the drying industry’s development.
