Product Details
Place of Origin: China
Brand Name: JingSu ShengMan
Certification: CE and ISO9001
Model Number: WF-30B
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: USD20000-USD300000
Packaging Details: Plywood Cases
Delivery Time: 60-90days
Payment Terms: L/C, T/T
Supply Ability: 10sets
Condition: |
New |
Warranty: |
1 Year |
Voltage: |
Customized |
Machine Type: |
Grinder |
Heating System: |
Steam,Electronic,oil |
Standard: |
GMP |
Material: |
Stainless Steel |
Dimension: |
Requirement From Customer |
Application: |
Pharmaceutical, Food, Chemical |
Power: |
4-15kw |
Condition: |
New |
Warranty: |
1 Year |
Voltage: |
Customized |
Machine Type: |
Grinder |
Heating System: |
Steam,Electronic,oil |
Standard: |
GMP |
Material: |
Stainless Steel |
Dimension: |
Requirement From Customer |
Application: |
Pharmaceutical, Food, Chemical |
Power: |
4-15kw |

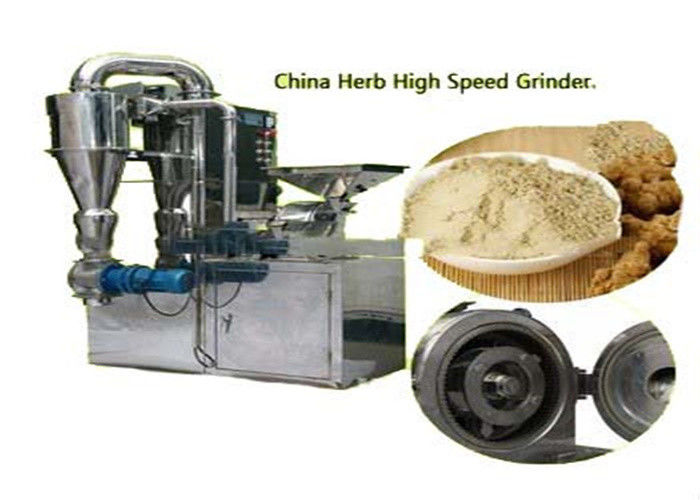

WF-30B Heat Sensitive Material Pulverizer China Herb High Speed Grinder
The machine has stable technical performance ,high production capacity and beautifual shape.It has large of application.It can get very ideal result to pulverize the drying fibre material .It is suitable for heat sensitivity materials such sa sugar ,plastic powder and chinese traditional madicine. This machine uses the relative motion between movable and fixed teeth disc, the raw materials to be crushed undertakes the comprehensive actions such as impacted by teeth, friction, impacted between raw materials, finally the raw materials are crushed. Its features are simple and solid in structure, stable in operation, high crushed efficiency. The crushed raw material can be discharged through the grinding chamber. Moreover, different size of raw material to be crushed can be got through exchanging screen with different mesh. Moreover model 30BV is made from stainless steel. Its inner wall is processed finely, so it is smooth and level. It overcome the shortcoming existed in model 30B III such as roughtness, accumulated powder. It makes the products of medicines, foodstuff and chemicals and so on are in conformity with the requirements of standard and meet the requirements of GMP.
Technical Parameters
| Model | 30 B |
| Main shaft speed | 5300 rpm |
| Main motor power | 7.5 kw |
| Discharging valve motor power | 0.37 kw |
| Draught fan motor power | 1..1 kw |
| Feed grain degree | 10-40 mm |
| Pulverizing fineness | 60-220 mm(eve will) |
| Pulverizing capacity | 50-250 kg/h |
| Main engine temperature rising | 65≤℃ |
Note: because the raw material exist in difference, the output in the table is for reference only
Technical advantages
1. It comes with simple and solid structure, stable running, high grinding efficiency.
2.The crushed material can be discharged through the grinding chamber. Moreover, different size of granule or powder can be got through exchanging screen with different mesh.
3. Its inner wall is processed finely, so it is smooth and level, which overcomes the shortcomings existed in the old model such as roughness,accumulated powder.
4.It makes the production of medicines, foodstuff and chemicals and so on in conformity with the requirements of state standard and GMP.
5.Water cooling device, and conveyor screw can be equipped according to customer''s needs
Applications
Model WF Dust-Collecting Herbs Pulverizer is Model WF medicine leaf grinding machine applied in the industries of pharmaceutics,chemical ,food and etc.
Pre-service:
As a good and rich experience supplier, we should offer customer the best quality and best price of the machine.
1. Introduce the suitable product to the customer in detail, answer the question raised by customer carefully.
2. Make the suitabe project as the customer requirement and make sure the machine is suitable for the material.
Sale service:
(1). Ensure product with high quality and pre-commissioning before delivery. (2). Delivery on time. (3). Provide full set of documents as customer’s requirements.
After-sale service:
Provide considerate services to minimize clients’ worries.
1. Assist clients to prepare for the first construction scheme.
2. Install and debug the equipment.
3. Train the first-line operators.
4. Examine the equipment.
5. Take initiative to eliminate the troubles rapidly.
6. Provide technical support.
7. Establish long-term and friendly relationship.
Service commitment:
1. Provide clients one-year warranty to make sure the machine work well.
2. We always keep certain inventory level of spare parts, which means the replacements can be sent to you timely.
3. Send every client a preferential quotation.
