WFJ Industrial Grinding Machine Dust Collecting Super Fine Powder Grinder 4-15kw

Product Details

Place of Origin: China

Brand Name: JingSu ShengMan

Certification: CE and ISO9001

Model Number: WFJ

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: USD20000-USD300000

Packaging Details: Plywood Cases

Delivery Time: 60-90days

Payment Terms: L/C, T/T

Supply Ability: 10sets

Get Best Price
High Light:

WFJ Industrial Grinding Machine

,

WFJ super fine powder grinder

,

Super Fine Powder Grinder 15kw

Condition:
New
Warranty:
1 Year
Voltage:
Customized
Machine Type:
Grinder
Heating System:
Steam,Electronic,oil
Standard:
GMP
Material:
Stainless Steel
Dimension:
Requirement From Customer
Application:
Pharmaceutical, Food, Chemical
Power:
4-15kw
Condition:
New
Warranty:
1 Year
Voltage:
Customized
Machine Type:
Grinder
Heating System:
Steam,Electronic,oil
Standard:
GMP
Material:
Stainless Steel
Dimension:
Requirement From Customer
Application:
Pharmaceutical, Food, Chemical
Power:
4-15kw

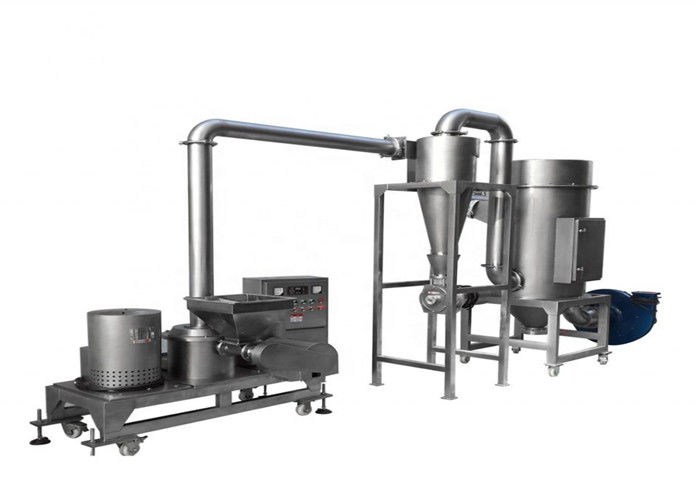

WFJ Industrial Grinding Machine Dust Collecting Super Fine Powder Grinder 4-15kw

WFJ Dust Collecting Super Fine grinder for making icing sugar and spice powder





Working



The material is fed into the crushing chamber by a screw conveyor, cut and crushed by high speed rotating blade and conveyed to the cyclone separator by means of negative pressure air conveyance before being discharged by bag type collector, and the dust is filtered and recovered by dust collector through filter barrel Having no dust flying during production, it can improve utilization rate of the material and reduce the cost of enterprise.




WFJ Industrial Grinding Machine Dust Collecting Super Fine Powder Grinder 4-15kw 0


Technical Parameters



Model
WFJ-10
WFJ-15
WFJ-20
WFJ-30
WFJ-60
WFJ-80
WFJ-100
Production Capacity (kg)
10~50
50~100
80~200
200~400
400~800
500~1000
600~1200
Feeding size (mm)
<5
<10
<10
<12
<12
<12
<12
Crushing fineness (mesh)
80-600
Motor power (kw)
12
13.37
18.37
42.5
77.5
96
138
Spindle speed (rpm)
4000
5800
4200
3800
3200
2800
2000
Weight (kg)
500
1000
1200
1800
2500
3000
4000
Overall dimension
(L*W*H)(mm)
1700x1800x2200
4500x1250x2700
6000x1250x2900
7100x1300x3650
8000x2300x4500
8500x2500x4600
10000x2800x5000


Note: because the raw material exist in difference, the output in the table is for reference only





WFJ Industrial Grinding Machine Dust Collecting Super Fine Powder Grinder 4-15kw 1



Technical advantages



1. Robust,simple and compact design requires minimum maintenance;

2. Made by SUS304 or SUS316 and mirror polished to meet GMP standards.

3. Alloy steel cutting knives.

4. Very easy and convinent for cleaning, changing sieve and cutting knives.

5. Different particle size can be achieved by changing sieve.

6. It is suitable for cutting wide range of products with little limilation on hardness, softness and fiber content etc.

7. Rotary knife speed is adjustable to get very gentle shredding process, which can considerably reduce fine paticles.



Applications

Comprised of main frame, auxiliary machine and electrical control cabinet, this pulverizing machine has such performances as winnowing, screen or mesh free, uniform size and continuous operation, and has reached the international advanced level, thus being widely used for material crushing in pharmaceutical, chemical and foodstuff trades etc..









WFJ Industrial Grinding Machine Dust Collecting Super Fine Powder Grinder 4-15kw 2




Pre-service:
As a good and rich experience supplier, we should offer customer the best quality and best price of the machine.
1. Introduce the suitable product to the customer in detail, answer the question raised by customer carefully.
2. Make the suitabe project as the customer requirement and make sure the machine is suitable for the material.

Sale service:
(1). Ensure product with high quality and pre-commissioning before delivery. (
2). Delivery on time. (3). Provide full set of documents as customer’s requirements.



After-sale service:
Provide considerate services to minimize clients’ worries.

1. Assist clients to prepare for the first construction scheme.
2. Install and debug the equipment.
3. Train the first-line operators.
4. Examine the equipment.
5. Take initiative to eliminate the troubles rapidly.
6. Provide technical support.
7. Establish long-term and friendly relationship.



Service commitment:
1. Provide clients one-year warranty to make sure the machine work well.

2. We always keep certain inventory level of spare parts, which means the replacements can be sent to you timely.

3. Send every client a preferential quotation.
