Product Details
Place of Origin: China
Brand Name: JingSu ShengMan
Certification: CE and ISO9001
Model Number: ZKG
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: USD20000-USD300000
Packaging Details: Plywood Cases
Delivery Time: 60-90days
Payment Terms: L/C, T/T
Supply Ability: 10sets
Condition: |
New |
Warranty: |
1 Year |
Heating Source: |
Steam/Thermal Oil |
Working Volume: |
300-3600L |
Heating Area: |
3.2-16.5㎡ |
Stirring Revolution: |
8-18rmp |
Power: |
4-22kw |
Material: |
SUS304, SUS316L |
Pressure In The Cylinder: |
-0.096-0.15 |
Type: |
Vacuum Harrow Dryer |
Condition: |
New |
Warranty: |
1 Year |
Heating Source: |
Steam/Thermal Oil |
Working Volume: |
300-3600L |
Heating Area: |
3.2-16.5㎡ |
Stirring Revolution: |
8-18rmp |
Power: |
4-22kw |
Material: |
SUS304, SUS316L |
Pressure In The Cylinder: |
-0.096-0.15 |
Type: |
Vacuum Harrow Dryer |

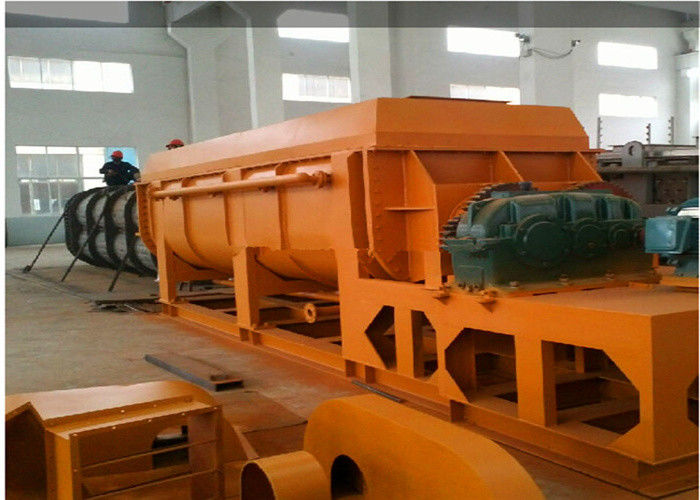

Drying machine for wood sawdust powder paddle sludge rotary dryer vacuum drying equipment
Product Description:
The following raw materials from pharmaceutical industry, foodstuff industy, chemical industry and so on can be dried.
Suitable for pulpiness,paste-like mixture or powder raw materials.
Thermal sensitive raw materials which should be dried under low temperature.
Raw materials that are easy to oxidize or explode and have strong irdtative or toxic properties
Raw materials that need to recover solvent
Characteristics:
1. Wide application range, high drying speed. Because the rake vacuum pump use jacket to heat and high vacuum to vent gases. So it can almost apply for all materials with different quality and different shape. It is especially suitable for flamable and oxidable materials.
2. High quality products. The rake teeth turns in two directions constantly, and the material is well mixed.
3. Small steam consumption.
4. Easy operation. It can be used to reclaim volatilizable gases, and reduce environment pollution
Technical parameters
| Item | ZKG-500 | ZKG-1000 | ZKG-3000 | ZKG-6000 |
| Working volume ( L) | 300 | 600 | 1800 | 16.5 |
| Heating area (㎡) | 3.2 | 5.1 | 10.6 | |
| Stirring revolution (rmp) | 8-18 | |||
| Power (kw) | 4 | 5.5 | 11 | 22 |
| Design Pressure of Jacket ( mpa) | 0.3 | |||
|
Pressure in the cylinder (mpa) |
-0.096-0.15 | |||
Note: The above data is for reference only. If having special requirements, the factory can provide the service of consultation and design.
Applications
Working:
It is an innovation horizontal batch-type vacuum dryer. The moisture of wet material will be evaporated by heat transmission. The stirrer with squeegee will remove material on hot surface and move in the container to form cycle flow. The evaporated moisture will be pumped out by vacuum pump.
Sale service:
(1). Ensure product with high quality and pre-commissioning before delivery. (2). Delivery on time. (3). Provide full set of documents as customer’s requirements.
After-sale service:
Provide considerate services to minimize clients’ worries.
1. Assist clients to prepare for the first construction scheme.
2. Install and debug the equipment.
3. Train the first-line operators.
4. Examine the equipment.
5. Take initiative to eliminate the troubles rapidly.
6. Provide technical support.
7. Establish long-term and friendly relationship.
Service commitment:
1. Provide clients one-year warranty to make sure the machine work well.
2. We always keep certain inventory level of spare parts, which means the replacements can be sent to you timely.
3. Send every client a preferential quotation.
