Product Details
Place of Origin: China
Brand Name: JingSu ShengMan
Certification: CE and ISO9001
Model Number: XL
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: USD20000-USD300000
Packaging Details: Plywood Cases
Delivery Time: 60-90days
Payment Terms: L/C, T/T
Supply Ability: 10sets
Condition: |
New |
Warranty: |
1 Year |
Voltage: |
Customized |
Machine Type: |
Granulator |
Heating System: |
Steam,Electronic,oil |
Standard: |
GMP |
Material: |
Stainless Steel |
Power Of Fan: |
4-22 Kw |
Dimension: |
Requirement From Customer |
Application: |
Pharmaceutical, Food, Chemical |
Condition: |
New |
Warranty: |
1 Year |
Voltage: |
Customized |
Machine Type: |
Granulator |
Heating System: |
Steam,Electronic,oil |
Standard: |
GMP |
Material: |
Stainless Steel |
Power Of Fan: |
4-22 Kw |
Dimension: |
Requirement From Customer |
Application: |
Pharmaceutical, Food, Chemical |

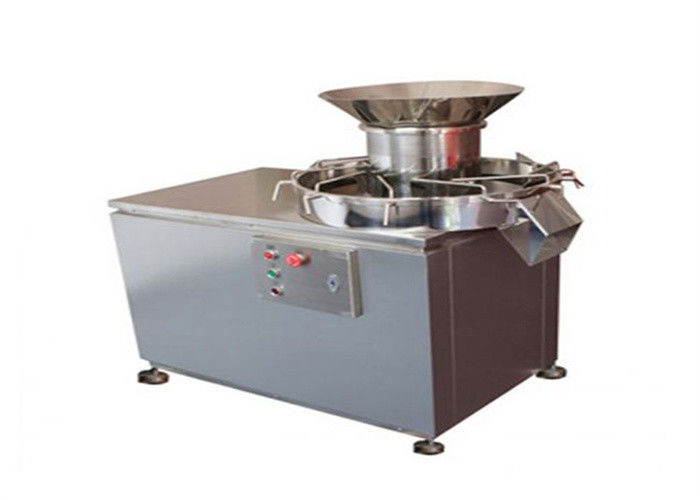

China manufacturer XL series high quality revolving granulator for seasoning granule making process
This machine adopts one pair of rotating grinding blade to grind form damp material into column-shape granule by stainless steel sieve cylinder which is provided for pelletize in next process. The machine can obtain different size granule by changing the stainless steel sieve.
All parts contacted with raw material in this machine are made of stainless steel. Its appearance is beauty. Its discharge is automatic.Therefore it can avoid the damaged conditions caused manual. It is suit-able for in line production too.
Working Principle
The motor can change speed and direction by the gear case, which make the Grinding Blade and materials pusher do opposite rotation., the materials pusher pin the materials by the inclined plane, and the Grinding Blade push the material to the screen barrel, then the materials formed into granules.
Technical Parameters
| Size of grinding blade(mm) | 250 | 300B | 300D |
| Diameter of granule(mm) | Φ2-2.2(According to needs of customers) | Φ1.2-3(According to needs of customers) | Φ0.5-6(According to needs of customers) |
| Production capacity(kg/h) | 100-200 | 140-400 | 300-600 |
| Overall dimensions (mm) | 700x540x1300 | 880x640x1300 | 1300x800x1200 |
| Power of motor(kw) | 3 | 4 | 7.5 |
| Weight(kg) | 350 | 400 | 780 |
Note: because the raw material exist in difference, the output in the table is for reference only.
Application
This machine is widely used in the pharmaceutical, food industry, chemical industry, light industry and so on, it is used in granulating the wet powder into granules, it is also used in granulating the agglomerate dry powder into granule. It is simple to operate, convenient to maintain, easy to clean, and discharges automatically. It is able to select cylindrical screen of different bore, and the materials contacted parts are made of stainless steel, which can make sure the material do not polluted.
Pre-service:
As a good and rich experience supplier, we should offer customer the best quality and best price of the machine.
1. Introduce the suitable product to the customer in detail, answer the question raised by customer carefully.
2. Make the suitabe project as the customer requirement and make sure the machine is suitable for the material.
Sale service:
(1). Ensure product with high quality and pre-commissioning before delivery. (2). Delivery on time. (3). Provide full set of documents as customer’s requirements.
After-sale service:
Provide considerate services to minimize clients’ worries.
1. Assist clients to prepare for the first construction scheme.
2. Install and debug the equipment.
3. Train the first-line operators.
4. Examine the equipment.
5. Take initiative to eliminate the troubles rapidly.
6. Provide technical support.
7. Establish long-term and friendly relationship.
Service commitment:
1. Provide clients one-year warranty to make sure the machine work well.
2. We always keep certain inventory level of spare parts, which means the replacements can be sent to you timely.
3. Send every client a preferential quotation.
