Product Details
Place of Origin: China
Brand Name: JingSu ShengMan
Certification: CE and ISO9001
Model Number: kzl
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: USD20000-USD300000
Packaging Details: Plywood Cases
Delivery Time: 60-90days
Payment Terms: L/C, T/T
Supply Ability: 10sets
Condition: |
New |
Warranty: |
1 Year |
Voltage: |
Customized |
Machine Type: |
Granulator |
Heating System: |
Steam,Electronic,oil |
Standard: |
GMP |
Material: |
Stainless Steel |
Power Of Fan: |
4-22 Kw |
Dimension: |
Requirement From Customer |
Application: |
Pharmaceutical, Food, Chemical |
Condition: |
New |
Warranty: |
1 Year |
Voltage: |
Customized |
Machine Type: |
Granulator |
Heating System: |
Steam,Electronic,oil |
Standard: |
GMP |
Material: |
Stainless Steel |
Power Of Fan: |
4-22 Kw |
Dimension: |
Requirement From Customer |
Application: |
Pharmaceutical, Food, Chemical |

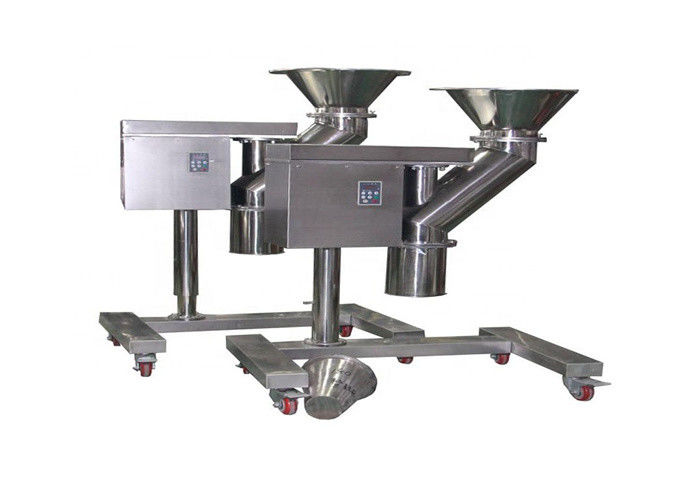

KZL high speed grinding granulator for dry milling or wet material conditioning
This machine is suitable for crushing and finishing particles in Chinese and Western medicine, food, chemical pigment and feed industries.
The particles with different shapes and specifications obtained by various granulating equipment are cut by the high-speed rotating blade combination of the machine, and discharged by the steel plate, then the particles with the same shape and specification can be obtained.
Working
After the raw material enters the feeding port of the granulator, it falls into a cylindrical workroom. The rotating rotary knife acts on the raw material, and the particles are thrown to the screen surface by centrifugal force. At the same time, the high-speed rotation of the rotary knife and the screen surface have a shear effect. The particles are crushed into a small granule between the rotary knife and the screen mesh and are discharged through the screen mesh.The distance between the knife and the screen and the speed of the rotary knife can be adjusted.
Technical Parameters
| Model | KZL-80 | KZL-120 | KZL-160 | KZL-180 |
| Screen diameter(mm) | 80 | 120 | 160 | 180 |
| Capacity (kg/h) | 50-200 | 100-300 | 150-400 | 200-500 |
| Mesh size(mm) | 1-8 | 1-8 | 1-8 | 1-8 |
| Power(kw) | 0.75 | 1.1 | 1.5 | 1.5 |
| Dimension (mm) |
630X430X900 (Height adjustable) |
800X600X950 (Height adjustable) |
930X650X1200 (Height adjustable) |
930X650X1200 (Height adjustable) |
| Weight (kg) | 90 | 110 | 120 | 150 |
| Rotating speed(r/min) | 0-1440 | 0-1440 | 0-1440 | 0-1440 |
| FOB(USD) | 1322 | 1479 | 1636 | 1800 |
Note: because the raw material exist in difference, the output in the table is for reference only.
Pre-service:
As a good and rich experience supplier, we should offer customer the best quality and best price of the machine.
1. Introduce the suitable product to the customer in detail, answer the question raised by customer carefully.
2. Make the suitabe project as the customer requirement and make sure the machine is suitable for the material.
Sale service:
(1). Ensure product with high quality and pre-commissioning before delivery. (2). Delivery on time. (3). Provide full set of documents as customer’s requirements.
After-sale service:
Provide considerate services to minimize clients’ worries.
1. Assist clients to prepare for the first construction scheme.
2. Install and debug the equipment.
3. Train the first-line operators.
4. Examine the equipment.
5. Take initiative to eliminate the troubles rapidly.
6. Provide technical support.
7. Establish long-term and friendly relationship.
Service commitment:
1. Provide clients one-year warranty to make sure the machine work well.
2. We always keep certain inventory level of spare parts, which means the replacements can be sent to you timely.
3. Send every client a preferential quotation.
