Product Details
Place of Origin: China
Brand Name: JingSu ShengMan
Certification: CE and ISO9001
Model Number: GSL
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: USD20000-USD300000
Packaging Details: Plywood Cases
Delivery Time: 60-90days
Payment Terms: L/C, T/T
Supply Ability: 10sets
Condition: |
New |
Warranty: |
1 Year |
Voltage: |
Customized |
Machine Type: |
Granulator |
Heating System: |
Steam,Electronic,oil |
Standard: |
GMP |
Material: |
Stainless Steel |
Power Of Fan: |
4-22 Kw |
Dimension: |
Requirement From Customer |
Application: |
Pharmaceutical, Food, Chemical |
Condition: |
New |
Warranty: |
1 Year |
Voltage: |
Customized |
Machine Type: |
Granulator |
Heating System: |
Steam,Electronic,oil |
Standard: |
GMP |
Material: |
Stainless Steel |
Power Of Fan: |
4-22 Kw |
Dimension: |
Requirement From Customer |
Application: |
Pharmaceutical, Food, Chemical |

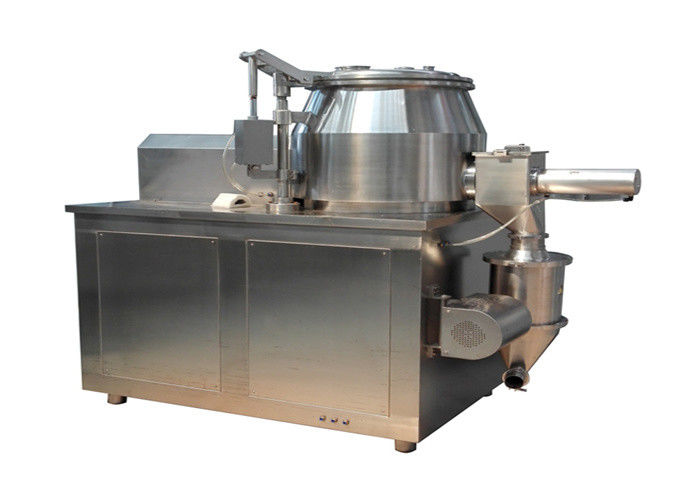

Stainless Steel Laboratory High- speed high shear mixer granulator machine for pharmaceuticals, foodstuff and chemical
WORK PRINCIPLE
The blending and granulating procedures and completed in the same vessel of the granulator. Powdery materials in the stationary conic vessel remain in a semi-flowing and rolling state owing to the agitation by a blending paddle, and are fully mixed. After pouring in adhesives ,the powdery materials gradually change into fine, damp granules turn moist and their shapes begin paddle and the inside wall of vessel, powdery materials turn into loose, soft materials. Through the action of granule shaping paddle, the soft materials gradually change into fine, damp granules with the same size.
Technical Parameters
| ITEM | GHL-10 | GHL-50 | GHL-150 | GHL-200 | GHL-250 | GHL-300 |
| VOLUME(L) | 10 | 50 | 150 | 200 | 250 | 300 |
| CAPACITY (kg/batch) | 3 | 15 | 50 | 80 | 100 | 130 |
| STIR SPEED (rpm) | 300/600 | 300/210 | 270/180 | 270/180 | 188/130 | 160/110 |
| STIR POWER (kw) | 1.5/2.2 | 4/5.5 | 9/11 | 11/14 | 11/14 | 11/14 |
| CUT POWER (kw) | 0.85/1.1 | 1.5/2.2 | 2.4/3 | 3.3/4 | 3.3/4 | 4.5/5.5 |
| CUT SPEED (rpm) | 1500/3000 | |||||
| WOR TIME (min) | 8-15 | |||||
| GRANULE SIZE(mesh) | 20-80 | |||||
Note: because the raw material exist in difference, the output in the table is for reference only.
FEATURES
1. Pneumatic bollercover automatic lift, easy close and operation.
2. Conic chamber, materials rolling evenly.
3. Open window and easy operation.
4. Touching screen with dynamic work image and vivid in operation.
5. 45-degree discharging outlet, the granules are completely discharged.
6. V-shaped granulating blade works in inclusion motion, and will keep the materials from entering the gap between V-shaped granulating blades and blades to become a corner, so it can mix evenly.
7. Interlayer jacket cooling and automatic temperature control can improve the quality of granules.
8. 36-degree Zigzag mixing paddles work in three-dimensional motion. The distance between the mixing paddles and the surface of boiler button is0.5 – 1.5mm, so it can mix evenly. There are few residues left on the boiler wall, so it can reduce friction and save 25% energy.
9. It is of labyrinth sealing construction. The rotary axel cavity can automatically spray and clean, featuring reliability in sealing and ease in cleaning.
Pre-service:
As a good and rich experience supplier, we should offer customer the best quality and best price of the machine.
1. Introduce the suitable product to the customer in detail, answer the question raised by customer carefully.
2. Make the suitabe project as the customer requirement and make sure the machine is suitable for the material.
Sale service:
(1). Ensure product with high quality and pre-commissioning before delivery. (2). Delivery on time. (3). Provide full set of documents as customer’s requirements.
After-sale service:
Provide considerate services to minimize clients’ worries.
1. Assist clients to prepare for the first construction scheme.
2. Install and debug the equipment.
3. Train the first-line operators.
4. Examine the equipment.
5. Take initiative to eliminate the troubles rapidly.
6. Provide technical support.
7. Establish long-term and friendly relationship.
Service commitment:
1. Provide clients one-year warranty to make sure the machine work well.
2. We always keep certain inventory level of spare parts, which means the replacements can be sent to you timely.
3. Send every client a preferential quotation.
