Product Details
Place of Origin: China
Brand Name: JingSu ShengMan
Certification: CE and ISO9001
Model Number: FLG
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: USD20000-USD300000
Packaging Details: Plywood Cases
Delivery Time: 60-90days
Payment Terms: L/C, T/T
Supply Ability: 10sets
Condition: |
New |
Warranty: |
1 Year |
Voltage: |
Customized |
Machine Type: |
Granulator |
Heating System: |
Steam,Electronic,oil |
Standard: |
GMP |
Material: |
Stainless Steel |
Power Of Fan: |
4-22 Kw |
Dimension: |
Requirement From Customer |
Application: |
Pharmaceutical, Food, Chemical |
Condition: |
New |
Warranty: |
1 Year |
Voltage: |
Customized |
Machine Type: |
Granulator |
Heating System: |
Steam,Electronic,oil |
Standard: |
GMP |
Material: |
Stainless Steel |
Power Of Fan: |
4-22 Kw |
Dimension: |
Requirement From Customer |
Application: |
Pharmaceutical, Food, Chemical |

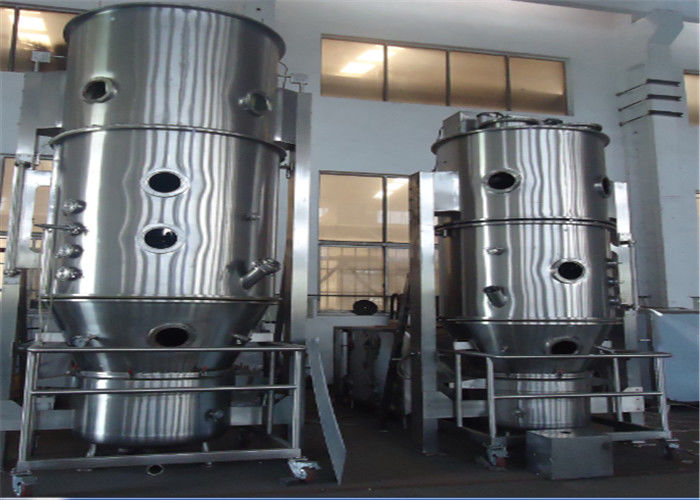

26-1500L PGL-B Spray Drying Granulator (Fluid Bed) for Chinese Tranditional Medicine Granule
PGL Series Spray Drying Granulator Product Overview:
The spray drying granulating unit is a device that can complete drying and granulation at the same time. According to the process requirements, the pressure, flow rate and size of the nozzle hole of the feed liquid pump can be adjusted to obtain the required spherical particles in a certain size ratio.
The working process of the spray drying granulating unit is that the material liquid is input through the diaphragm pump at high pressure, spraying out the mist-like droplets, and then descending in parallel with the hot air. Most of the powder particles are collected by the discharge port at the bottom of the tower, and the exhaust gas and its tiny powder are passed through the cyclone. The separator is separated, the waste gas is discharged by the exhaust fan, and the powder is collected by the pollination tube set at the lower end of the cyclone separator. The outlet of the fan can also be equipped with a secondary dust removal device, and the recovery rate is above 96-98%.
The materials of the tower body, pipes and separators in the contact part of the spray drying granulation unit with the material are all made of SUS304. There is a sufficient moisturizing layer between the inside of the tower and the outer shell. The filling material is ultra-fine glass wool. The tower is equipped with an observation door, sight glass, light source and control instrument, which are controlled and displayed by the electrical control console.
Technical Parameters
| Item | Unit type | PGL-3B | PGL-5B | PGL-10B | PGL-20B | PGL-30B | PGL-80B | PGL-120B | |
| fluid extract | min | kg/h | 2 | 4 | 5 | 10 | 20 | 40 | 55 |
| max | kg/h | 4 | 6 | 10 | 30 | 40 | 100 | 140 | |
| boiling capacity | min | kg/batch | 2 | 6 | 15 | 30 | 60 | 100 | 150 |
| max | kg/batch | 6 | 15 | 30 | 80 | 160 | 250 | 450 | |
| specific gravity of liquid | kg/L | ≤1.30 | |||||||
| volume of material container | L | 26 | 50 | 220 | 420 | 620 | 980 | 1600 | |
| dia.of container | mm | 400 | 550 | 770 | 1000 | 1200 | 1400 | 1600 | |
| power of induced-draft fan | kw | 4 | 5.5 | 7.5 | 15 | 22 | 30 | 37 | |
| power of induced-draft fan | kw | 0.35 | 0.75 | 0.75 | 1.2 | 2.2 | 2.2 | 4 | |
| steam | consumed amount | kg/h | 40 | 70 | 99 | 210 | 300 | 366 | 465 |
| pressure | Mpa | 0.40-0.60 | |||||||
| prwer of electroc heater | kw | 9 | 15 | 21 | 25.5 | 51.5 | 60 | 75 | |
| compressed air | consumed amount | m3/min | 0.9 | 0.9 | 0.9 | 0.9 | 1.1 | 1.3 | 1.8 |
| pressure | Mpa | 0.30-0.60 | |||||||
| temperature of operation | ℃ | automatic adjustment from room temperature to 130℃ | |||||||
| moisture of product | % | ≥0.5 decided in accordance with detaied material | |||||||
| yield of material | % | ≥99 | |||||||
| noise of equiment | dB | <70 | |||||||
| size of main machine | Ø | mm | 400 | 550 | 770 | 1000 | 1200 | 1400 | 1600 |
| H1 | mm | 940 | 1050 | 1070 | 1180 | 1620 | 1620 | 1690 | |
| H2 | mm | 2100 | 2400 | 3150 | 3150 | 3630 | 4120 | 5050 | |
| H3 | mm | 2450 | 2750 | 3700 | 3700 | 4100 | 4770 | 5800 | |
| B | mm | 740 | 890 | 1420 | 1420 | 1600 | 1820 | 2100 | |
◆Fluidextract,vitamin,animal glue,vegetable glue,barm,protease,lipasee,amylase and soon
Foodstuff
Mile and egg products
Vegetable juices such as rich fat milk powed~baby meal,egg white(vitelling) and so on.
Check extract,coffee,instant tea,protein of fish or pork,protein of potato,soybean or earthpea and so on.
◆Sugar
Maize,maize starch,glucose,pectin,potassium sorbate,maltose and so on Detergent
Emulsifying agent,brightener,dispersant,soda ash,soap powder,ordinary washing powder,high effective washing powder and so on
◆Chemical industry
Dyestuff,pigment,resin,white carbon black,ceramics and so on
Pre-service:
As a good and rich experience supplier, we should offer customer the best quality and best price of the machine.
1. Introduce the suitable product to the customer in detail, answer the question raised by customer carefully.
2. Make the suitabe project as the customer requirement and make sure the machine is suitable for the material.
Sale service:
(1). Ensure product with high quality and pre-commissioning before delivery. (2). Delivery on time. (3). Provide full set of documents as customer’s requirements.
After-sale service:
Provide considerate services to minimize clients’ worries.
1. Assist clients to prepare for the first construction scheme.
2. Install and debug the equipment.
3. Train the first-line operators.
4. Examine the equipment.
5. Take initiative to eliminate the troubles rapidly.
6. Provide technical support.
7. Establish long-term and friendly relationship.
Service commitment:
1. Provide clients one-year warranty to make sure the machine work well.
2. We always keep certain inventory level of spare parts, which means the replacements can be sent to you timely.
3. Send every client a preferential quotation.
