Product Details
Place of Origin: China
Brand Name: JingSu ShengMan
Certification: CE and ISO9001
Model Number: WLDH
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: USD20000-USD300000
Packaging Details: Plywood Cases
Delivery Time: 60-90days
Payment Terms: L/C, T/T
Supply Ability: 10sets
Condition: |
New |
Warranty: |
1 Year |
Voltage: |
Customized |
Machine Type: |
Mixer |
Heating System: |
Steam,Electronic,oil |
Standard: |
GMP |
Material: |
Stainless Steel |
Dimension: |
Requirement From Customer |
Application: |
Pharmaceutical, Food, Chemical |
Power: |
1.5-75kw |
Condition: |
New |
Warranty: |
1 Year |
Voltage: |
Customized |
Machine Type: |
Mixer |
Heating System: |
Steam,Electronic,oil |
Standard: |
GMP |
Material: |
Stainless Steel |
Dimension: |
Requirement From Customer |
Application: |
Pharmaceutical, Food, Chemical |
Power: |
1.5-75kw |

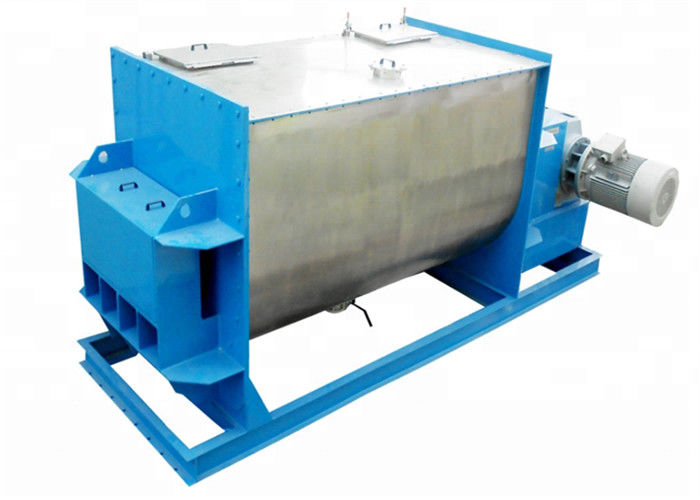

WLDH Model Horizontal Stainless Steel Double Industrial Ribbon Blender Mixer with one year warranty
Description of Horizontal Ribbon Mixer
Horizontal Ribbon mixer is a brand-new mixer. It is characterized in high efficiency, high degree of homogeneity, high load coefficient, low energy consumption, low pollution, little destruction to frangible material. It is suitable for mixing a wide range of materials such as powder-powder, power-liquid, especially for paste, thick materials.
Horizontal Ribbon mixer is composed of container, screw stirring paddles and transitional parts: the screw paddle are generally made into 1 layers or 3 layers, the outer screw converge is the material to the center from two sides, and the inner layer of screw conveys the material to the two sides from the center, so as to from convection mixing of powder which needs to add liquid, and paste material.
Technical Parameters
| Model | All volume (M3) |
Loads coefficient | Electrical machinery power (KW) |
Size(mm)× Max-diameter ×High | Equipment weight (kg) |
| WLDH-0.1 | 0.1 | 0.4-0.8 | 3 | 1190×740×770 | 330 |
| WLDH-0.3 | 0.3 | 0.4-0.8 | 4 | 2030×630×980 | 720 |
| WLDH-0.5 | 0.5 | 0.4-0.8 | 7.5 | 2320×730×1130 | 980 |
| WLDH-1 | 1 | 0.4-0.8 | 11 | 2800×920×1320 | 1700 |
| WLDH-1.5 | 1.5 | 0.4-0.8 | 11 | 3180×1020×1550 | 1800 |
| WLDH-2 | 2 | 0.4-0.8 | 15 | 3310×1120×1640 | 2100 |
| WLDH-3 | 3 | 0.4-0.8 | 18.5 | 3750×1290×1820 | 3000 |
| WLDH-4 | 4 | 0.4-0.8 | 22 | 4220×1400×1990 | 3980 |
| WLDH-5 | 5 | 0.4-0.8 | 22 | 4220×1500×2100 | 4620 |
| WLDH-6 | 6 | 0.4-0.8 | 30 | 4700×1610×2260 | 6180 |
| WLDH-8 | 8 | 0.4-0.8 | 37 | 4420×2150×2470 | 8200 |
| WLDH-10 | 10 | 0.4-0.8 | 45 | 5520×2960×2720 | 8920 |
| WLDH-12 | 12 | 0.4-0.8 | 45 | 5720×3010×2840 | 9520 |
| WLDH-15 | 15 | 0.4-0.8 | 55 | 5840×3540×2940 | 9950 |
Note: because the raw material exist in difference, the output in the table is for reference only
Main Use and Application of Horizontal Ribbon Mixer
The Horizontal ribbon mixer is generally used to mix viscous or adhesive powder material,or powder with liquid additive,or pasty material.Because it is difficult to clean viscous material,the machine is good at mixing material with large capacity and continuous demand.
This machine is applied in the industry of pharmaceutical,foodstuff,chemical,pesticides,plastic,pigment and cosmetics.
Pre-service:
As a good and rich experience supplier, we should offer customer the best quality and best price of the machine.
1. Introduce the suitable product to the customer in detail, answer the question raised by customer carefully.
2. Make the suitabe project as the customer requirement and make sure the machine is suitable for the material.
Sale service:
(1). Ensure product with high quality and pre-commissioning before delivery. (2). Delivery on time. (3). Provide full set of documents as customer’s requirements.
After-sale service:
Provide considerate services to minimize clients’ worries.
1. Assist clients to prepare for the first construction scheme.
2. Install and debug the equipment.
3. Train the first-line operators.
4. Examine the equipment.
5. Take initiative to eliminate the troubles rapidly.
6. Provide technical support.
7. Establish long-term and friendly relationship.
Service commitment:
1. Provide clients one-year warranty to make sure the machine work well.
2. We always keep certain inventory level of spare parts, which means the replacements can be sent to you timely.
3. Send every client a preferential quotation.
Jiangsu Shengman Drying Equipment Engineering Co.,Ltd, established in 2011, known as a local leading high-tech enterprise, is located in Zhenglu town, Changzhou, Jiangsu, China. Shengman is a large-scale production enterprise in China drying industry with a registered capital of 35,000,000 RMB, specialized in designing &manufacturing various kinds of dryers, granulators, mixers, grinders ,dust removers, etc. Shengman owns an area of over 200,000㎡, and realizes annual sales of over 70,000,000RMB for consecutive years. Shengman has passed European Union CE authentication, ISO 9001 quality management system certification and got good bank credit for AAA. Now Shengman has been one of the largest drying equipment production enterprises in East China and keeping leading the drying industry’s development.
