Product Details
Place of Origin: China
Brand Name: JingSu ShengMan
Certification: CE and ISO9001
Model Number: WLDH
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: USD20000-USD300000
Packaging Details: Plywood Cases
Delivery Time: 60-90days
Payment Terms: L/C, T/T
Supply Ability: 10sets
Condition: |
New |
Warranty: |
1 Year |
Voltage: |
Customized |
Machine Type: |
Mixer |
Heating System: |
Steam,Electronic,oil |
Standard: |
GMP |
Material: |
Stainless Steel |
Dimension: |
Requirement From Customer |
Application: |
Pharmaceutical, Food, Chemical |
Power: |
1.5-75kw |
Condition: |
New |
Warranty: |
1 Year |
Voltage: |
Customized |
Machine Type: |
Mixer |
Heating System: |
Steam,Electronic,oil |
Standard: |
GMP |
Material: |
Stainless Steel |
Dimension: |
Requirement From Customer |
Application: |
Pharmaceutical, Food, Chemical |
Power: |
1.5-75kw |

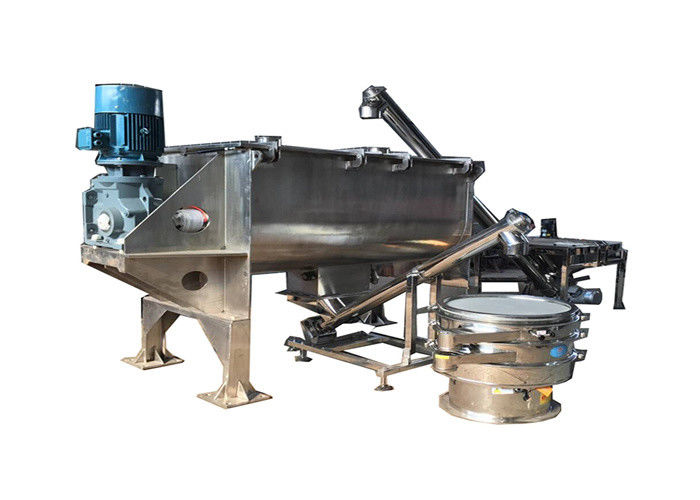

Industrial Powder Mixer / Industrial food Blender / chemical Powder Mixing Machine
Description
This machine is composed of container, screw stirring paddles and transitional parts; the screw paddle are generally made into 1 layer or 3 layers, the outer screw converge is the material to the centre front two sides, and the inner layer of screw conveys the material to the two sides from the centre, so as to form convection mixing. The cubage can be made into rotundity, so the jacket can be played in reaction and drying.
Technical Parameters
| Model | 300 | 500 | 1000 | 1500 | 2000 |
| Barrel Volume(L) | 300 | 500 | 1000 | 1500 | 2000 |
| Loading Volume(L) | 100-180 | 200-300 | 400-600 | 600-900 | 800-1200 |
| Mixing time(min) | 8-20 | 8-20 | 8-20 | 8-2 | 8-20 |
| Stir Motor(kw) | 3-5.5 | 4-11 | 7.5-15 | 11-18.5 | 18.5-30 |
| Weight(kg) | 510 | 920 | 1450 | 1950 | 3160 |
Note: because the raw material exist in difference, the output in the table is for reference only
Characteristics
1. It is suitable for mixing materials of powder-powder and power-liquid, especially for paste,powder and thick materials, such as putty, stone coatings, metal powders etc.
2. It is a new type of mixing equipment with high efficiency, high uniformity, high load factor,low energy consumption, low pollution and little destruction to frangible material.
3. The major sections of a mixer are barrel, ribbon agitators, feeding ports, discharging port and driven unit.
4. Double ribbon mixer drive the material from two ends to centre through the help of the outer ribbon, while the inner ribbon push the material from centre to two ends, thus, material achieve a high mixing effect at short time.
5. The ribbon mixer can be equipped with heating or cooling jacket if temperature control is required. We will add spraying or atomizing unit inside the tank.
Application
The Horizontal ribbon mixer is generally used to mix viscous or adhesive powder material,or powder with liquid additive,or pasty material.Because it is difficult to clean viscous material,the machine is good at mixing material with large capacity and continuous demand.
This machine is applied in the industry of pharmaceutical,foodstuff,chemical,pesticides,plastic,pigment and cosmetics.
Pre-service:
As a good and rich experience supplier, we should offer customer the best quality and best price of the machine.
1. Introduce the suitable product to the customer in detail, answer the question raised by customer carefully.
2. Make the suitabe project as the customer requirement and make sure the machine is suitable for the material.
Sale service:
(1). Ensure product with high quality and pre-commissioning before delivery. (2). Delivery on time. (3). Provide full set of documents as customer’s requirements.
After-sale service:
Provide considerate services to minimize clients’ worries.
1. Assist clients to prepare for the first construction scheme.
2. Install and debug the equipment.
3. Train the first-line operators.
4. Examine the equipment.
5. Take initiative to eliminate the troubles rapidly.
6. Provide technical support.
7. Establish long-term and friendly relationship.
Service commitment:
1. Provide clients one-year warranty to make sure the machine work well.
2. We always keep certain inventory level of spare parts, which means the replacements can be sent to you timely.
3. Send every client a preferential quotation.
Jiangsu Shengman Drying Equipment Engineering Co.,Ltd, established in 2011, known as a local leading high-tech enterprise, is located in Zhenglu town, Changzhou, Jiangsu, China. Shengman is a large-scale production enterprise in China drying industry with a registered capital of 35,000,000 RMB, specialized in designing &manufacturing various kinds of dryers, granulators, mixers, grinders ,dust removers, etc. Shengman owns an area of over 200,000㎡, and realizes annual sales of over 70,000,000RMB for consecutive years. Shengman has passed European Union CE authentication, ISO 9001 quality management system certification and got good bank credit for AAA. Now Shengman has been one of the largest drying equipment production enterprises in East China and keeping leading the drying industry’s development.
