Product Details
Place of Origin: China
Brand Name: JingSu ShengMan
Certification: CE and ISO9001
Model Number: SZH
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: USD20000-USD300000
Packaging Details: Plywood Cases
Delivery Time: 60-90days
Payment Terms: L/C, T/T
Supply Ability: 10sets
Condition: |
New |
Warranty: |
1 Year |
Voltage: |
Customized |
Machine Type: |
Mixer |
Heating System: |
Steam,Electronic,oil |
Standard: |
GMP |
Material: |
Stainless Steel |
Dimension: |
Requirement From Customer |
Application: |
Pharmaceutical, Food, Chemical |
Power: |
1.1-11kw |
Condition: |
New |
Warranty: |
1 Year |
Voltage: |
Customized |
Machine Type: |
Mixer |
Heating System: |
Steam,Electronic,oil |
Standard: |
GMP |
Material: |
Stainless Steel |
Dimension: |
Requirement From Customer |
Application: |
Pharmaceutical, Food, Chemical |
Power: |
1.1-11kw |

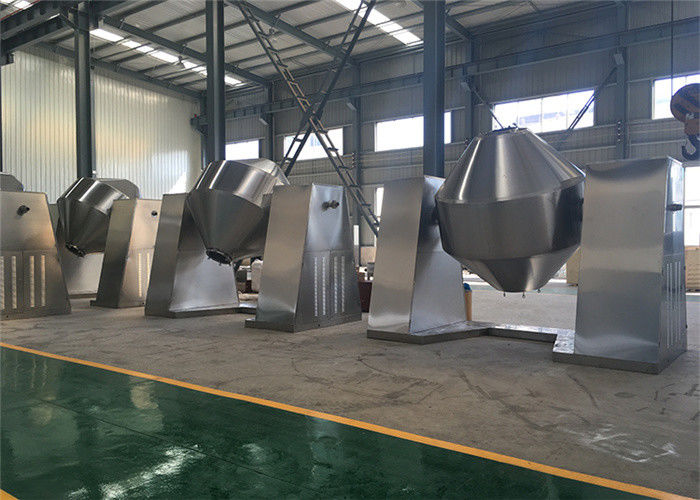

W shape cheap price SZH Dry Powder double conical mixing Machine for foodstuff industry
Principles:
1. heat source pass through the sealed jacket
2. the heat will be transmitted to the raw material to be dried through inner shell
3. under driving of power, the tank is rotated slowly and the raw material inside it is mixed continuously. then the purpose of reinforced drying can realized
4. the material is at a vacuum state, the drop of steam jpressure makes the moisture at the surface of raw material become saturation and will evaporate
5. the solvent will be discharged through vacuum pump
6. the inner moisture of raw material will infiltrate, evaporate and discharge continuously. these three processes are carried continuously and the purpose of drying can be realized within a short time
Technical Parameters
| Model | SZG-100 | SZG-350 | SZG-500 | SZG-750 | SZG-1000 | SZG-1500 | SZG-2000 | |
| Total volume (L) | 100 | 350 | 500 | 750 | 1000 | 1500 | 2000 | |
| Loading volume (L) | ≤50 | ≤ 175 | ≤ 250 | ≤ 375 | ≤ 500 | ≤ 750 | ≤ 1000 | |
| Rotary speed (r/min) | 3-13 | |||||||
| Motor power (kw) | 0.75 | 1.1 | 1.5 | 2 | 3 | 3 | 4 | |
| Rotary height (m) | 1.75 | 2.1 | 2.25 | 2.49 | 2.8 | 2.94 | 2.99 | |
| Tank inner pressure (Mpa) | -0.1-0.15 | |||||||
| Clip set pressure (Mpa) | ≤ 0.3 | |||||||
| Working temp.(°C) | Inner tank ≤ 85 Clip set ≤ 140 | |||||||
| Heating media | Steam, Hot water, Heat transfer oil | |||||||
| Weight (kg) | 800 | 1100 | 1200 | 1500 | 2800 | 3300 | 3600 | |
| Floor area (L*W) | 2160*800 | 2260*800 | 2350*800 | 2550*1000 | 2860*1300 | 3260*1400 | 3760*1800 | |
Note: because the raw material exist in difference, the output in the table is for reference only
Features
1. The mixing barrel is a W-shaped double-tapered cylinder, and the material is 304-2B high-quality stainless steel plate ring formed by round and close welding, which is more conducive to cleaning the barrel after the material is mixed. Both the inner and outer walls are precisely polished and polished, with smooth surface, no dead ends, thorough discharge, and easy cleaning;
2. The transmission system is composed of motor, reducer, sprocket, bearing, transmission shaft and other parts. There is no noise in the working process, smooth operation, no jitter, and no eccentricity;
4. The frame of the mixer is made of channel steel, which is welded firmly, and the outer frame of the frame is made of 304-2Bδ1.5mm stainless steel. The surface is flat, without scratches, and no welding traces. The side of the rotating bracket electrical control is a movable door for easy maintenance;
Application
It is suitable for the raw materials that need to concentrate, mix and dry at low temperature(eg. biochemistry products in chemical, pharmaceutical and foodstuff indusries).
1. materials that are easy to oxidize
2. materials that are easy to volatilize
3. materials that having strong heat sensitive or toxic
4. materials that should not destroy its crystal in drying
Pre-service:
As a good and rich experience supplier, we should offer customer the best quality and best price of the machine.
1. Introduce the suitable product to the customer in detail, answer the question raised by customer carefully.
2. Make the suitabe project as the customer requirement and make sure the machine is suitable for the material.
Sale service:
(1). Ensure product with high quality and pre-commissioning before delivery. (2). Delivery on time. (3). Provide full set of documents as customer’s requirements.
After-sale service:
Provide considerate services to minimize clients’ worries.
1. Assist clients to prepare for the first construction scheme.
2. Install and debug the equipment.
3. Train the first-line operators.
4. Examine the equipment.
5. Take initiative to eliminate the troubles rapidly.
6. Provide technical support.
7. Establish long-term and friendly relationship.
Service commitment:
1. Provide clients one-year warranty to make sure the machine work well.
2. We always keep certain inventory level of spare parts, which means the replacements can be sent to you timely.
3. Send every client a preferential quotation.
Jiangsu Shengman Drying Equipment Engineering Co.,Ltd, established in 2011, known as a local leading high-tech enterprise, is located in Zhenglu town, Changzhou, Jiangsu, China. Shengman is a large-scale production enterprise in China drying industry with a registered capital of 35,000,000 RMB, specialized in designing &manufacturing various kinds of dryers, granulators, mixers, grinders ,dust removers, etc. Shengman owns an area of over 200,000㎡, and realizes annual sales of over 70,000,000RMB for consecutive years. Shengman has passed European Union CE authentication, ISO 9001 quality management system certification and got good bank credit for AAA. Now Shengman has been one of the largest drying equipment production enterprises in East China and keeping leading the drying industry’s development.
