Product Details
Place of Origin: China
Brand Name: JingSu ShengMan
Certification: CE and ISO9001
Model Number: SZG
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: USD20000-USD300000
Packaging Details: Plywood Cases
Delivery Time: 60-90days
Payment Terms: L/C, T/T
Supply Ability: 10sets
Condition: |
New |
Power: |
0.75KW-7.5KW |
Total Volume: |
100-500L |
Working Volume: |
50-2500L |
Total Weight: |
825-6000kg |
Heating Area: |
1.16-14.1㎡ |
Warranty: |
1 Year |
Heating Source: |
Hot Water/Steam/Thermal Oil |
Drying Efficiency: |
90% |
Rotating Height: |
1810-4180 |
Condition: |
New |
Power: |
0.75KW-7.5KW |
Total Volume: |
100-500L |
Working Volume: |
50-2500L |
Total Weight: |
825-6000kg |
Heating Area: |
1.16-14.1㎡ |
Warranty: |
1 Year |
Heating Source: |
Hot Water/Steam/Thermal Oil |
Drying Efficiency: |
90% |
Rotating Height: |
1810-4180 |

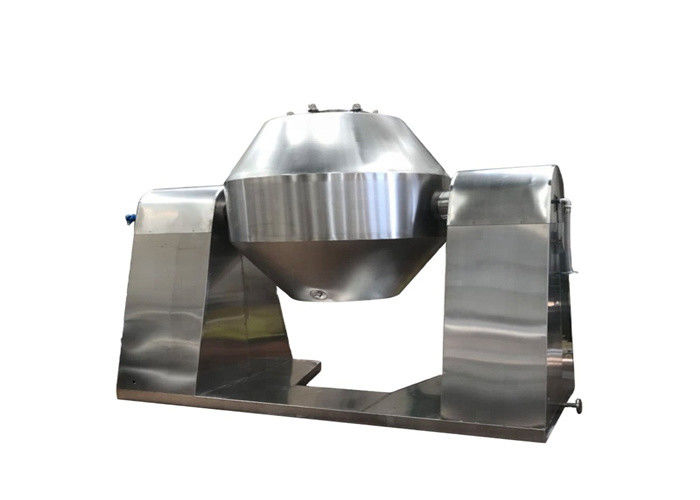

2021 Stainless Steel Roto Cone Vacuum Dryer in Food Industry for Food Additives
The principle of work
In airtight sandwich tube such as heat energy (hot water, low pressure steam or heat conduction oil), the quantity of heat inside the shell to be dry material. In power drive, tanks a slow rotation, tank material continuously flipping, mixed, from inside the wall surface accept quantity of heat, so as to achieve the purpose of aggrandizement is dry. The materials under vacuum condition, the steam pressure drop make the material of surface water (solvent) reached saturation and evaporation, and the vacuum pump discharge recovery in time. Water inside of materials (solvent) continually to surface infiltration and evaporation, releasing, three process continuously, and the material in a short period of time to dry purpose.
Technical parameters
| Name | unit | 100 | 200 | 350 | 500 | 1000 | 2000 | 3000 | 4000 | 5000 |
| Total volume | L | 100 | 200 | 350 | 500 | 1000 | 2000 | 3000 | 4000 | 5000 |
| working volume | L | 50 | 100 | 175 | 250 | 500 | 1000 | 1500 | 2000 | 2500 |
| heating area | ㎡ | 1.16 | 1.5 | 2 | 2.63 | 4.61 | 7.5 | 10.2 | 12.1 | 14.1 |
| speed | rmp | 6 | 6 | 6 | 6 | 6 | 5 | 4 | 4 | 4 |
| power | kw | 0.75 | 1.1 | 1.5 | 1.5 | 3 | 4 | 5.5 | 7.5 | 7.5 |
| rotating height | mm | 1810 | 1910 | 2090 | 2195 | 2665 | 3055 | 3530 | 3800 | 4180 |
| total weight | kg | 825 | 1050 | 1350 | 1650 | 2070 | 3000 | 4500 | 5350 | 6000 |
Applications
1. Material that cannot undertake high temperature.
2. Material that is easy to oxidize.
3. Material that do not permit to destruct.
4. To recover material with residual volatile.
5. Material with vigorous irritative and toxicity.
6. Biology products and mine.
7. Dry raw materials of pharmaceutical industry, chemical industry, foodstuff industry, dyestuff industry at low temp etc.
Product features
A ROM watts embellish valve high vacuum the unit may be produce high vacuum degree, limits the vacuum high vacuum evaporation dry, meet the thermal material low water content low temperature drying requirements.
A double cone drying machine clip set inside the heating medium low temperature steam, because the water vapor in the process of heating have clip, heat transfer K value for hot water heating of 3 times. So in double cone drying machine this unit volume heat transfer area slants little dryers can still fast effective provide dry heat (per kg offer 550 calories quantity of heat low temperature steam).
Pre-service:
As a good and rich experience supplier, we should offer customer the best quality and best price of the machine.
1. Introduce the suitable product to the customer in detail, answer the question raised by customer carefully.
2. Make the suitabe project as the customer requirement and make sure the machine is suitable for the material.
Sale service:
(1). Ensure product with high quality and pre-commissioning before delivery. (2). Delivery on time. (3). Provide full set of documents as customer’s requirements.
After-sale service:
Provide considerate services to minimize clients’ worries.
1. Assist clients to prepare for the first construction scheme.
2. Install and debug the equipment.
3. Train the first-line operators.
4. Examine the equipment.
5. Take initiative to eliminate the troubles rapidly.
6. Provide technical support.
7. Establish long-term and friendly relationship.
Service commitment:
1. Provide clients one-year warranty to make sure the machine work well.
2. We always keep certain inventory level of spare parts, which means the replacements can be sent to you timely.
3. Send every client a preferential quotation.
