Product Details
Place of Origin: China
Brand Name: JingSu ShengMan
Certification: CE and ISO9001
Model Number: SZG
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: USD20000-USD300000
Packaging Details: Plywood Cases
Delivery Time: 60-90days
Payment Terms: L/C, T/T
Supply Ability: 10sets
Condition: |
New |
Power: |
0.75KW-7.5KW |
Total Volume: |
100-500L |
Working Volume: |
50-2500L |
Total Weight: |
825-6000kg |
Heating Area: |
1.16-14.1㎡ |
Warranty: |
1 Year |
Heating Source: |
Hot Water/Steam/Thermal Oil |
Drying Efficiency: |
90% |
Rotating Height: |
1810-4180 |
Condition: |
New |
Power: |
0.75KW-7.5KW |
Total Volume: |
100-500L |
Working Volume: |
50-2500L |
Total Weight: |
825-6000kg |
Heating Area: |
1.16-14.1㎡ |
Warranty: |
1 Year |
Heating Source: |
Hot Water/Steam/Thermal Oil |
Drying Efficiency: |
90% |
Rotating Height: |
1810-4180 |
Fruit Juice Powder Double Conical Revolving Vacuum Fruit Dryer Machine Dryers in Food Industry
Product Description
SZG Series Double Taper Vacuum Drier is a new generation drying device developed by our factory on the basis of combining the technology of same products. It has two connecting ways, i.e. Pulley or chain. Therefore it is stable in operation. The special design guarantees two shafts realize good concentricity. Heat medium and vacuum system all adapt reliable machinery seal or rotating joint made from abroad. On the basis, we also developed SZG-A. It can carry out steeples speed change and constant temperature control.As a special factory in drying industry, we provide hundreds of set to customers for their use. As for working medium, it may be high temperature conduction heat oil or middle temperature steam. For drying the adhesive raw material, the factory has designed specially a stirring plate for you.

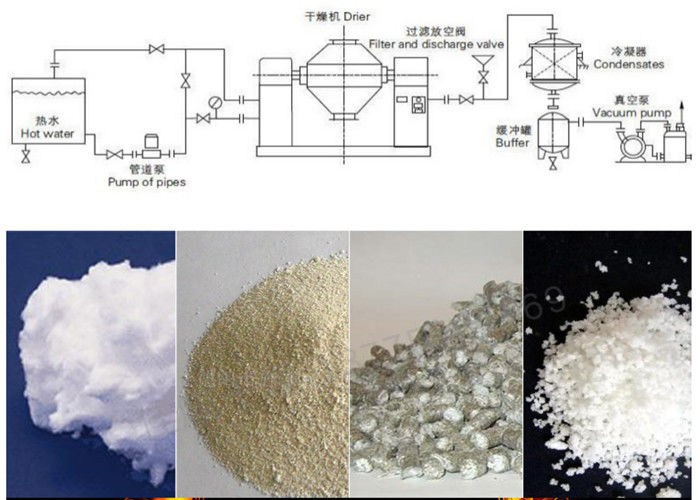

Principle
○ Let heat source (for example, low pressure steam or heat conduct oil) pass through the sealed jacket. The heat will be transmitted to raw material to be dried through inner shell;
Technical parameters
| Name | unit | 100 | 200 | 350 | 500 | 1000 | 2000 | 3000 | 4000 | 5000 |
| Total volume | L | 100 | 200 | 350 | 500 | 1000 | 2000 | 3000 | 4000 | 5000 |
| working volume | L | 50 | 100 | 175 | 250 | 500 | 1000 | 1500 | 2000 | 2500 |
| heating area | ㎡ | 1.16 | 1.5 | 2 | 2.63 | 4.61 | 7.5 | 10.2 | 12.1 | 14.1 |
| speed | rmp | 6 | 6 | 6 | 6 | 6 | 5 | 4 | 4 | 4 |
| power | kw | 0.75 | 1.1 | 1.5 | 1.5 | 3 | 4 | 5.5 | 7.5 | 7.5 |
| rotating height | mm | 1810 | 1910 | 2090 | 2195 | 2665 | 3055 | 3530 | 3800 | 4180 |
| total weight | kg | 825 | 1050 | 1350 | 1650 | 2070 | 3000 | 4500 | 5350 | 6000 |
Applications
1. Material that cannot undertake high temperature.
2. Material that is easy to oxidize.
3. Material that do not permit to destruct.
4. To recover material with residual volatile.
5. Material with vigorous irritative and toxicity.
6. Biology products and mine.
7. Dry raw materials of pharmaceutical industry, chemical industry, foodstuff industry, dyestuff industry at low temp etc.
Pre-service:
As a good and rich experience supplier, we should offer customer the best quality and best price of the machine.
1. Introduce the suitable product to the customer in detail, answer the question raised by customer carefully.
2. Make the suitabe project as the customer requirement and make sure the machine is suitable for the material.
Sale service:
(1). Ensure product with high quality and pre-commissioning before delivery. (2). Delivery on time. (3). Provide full set of documents as customer’s requirements.
After-sale service:
Provide considerate services to minimize clients’ worries.
1. Assist clients to prepare for the first construction scheme.
2. Install and debug the equipment.
3. Train the first-line operators.
4. Examine the equipment.
5. Take initiative to eliminate the troubles rapidly.
6. Provide technical support.
7. Establish long-term and friendly relationship.
Service commitment:
1. Provide clients one-year warranty to make sure the machine work well.
2. We always keep certain inventory level of spare parts, which means the replacements can be sent to you timely.
3. Send every client a preferential quotation.
