Product Details
Place of Origin: China
Brand Name: JingSu ShengMan
Certification: CE and ISO9001
Model Number: vacuum dryer
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: USD20000-USD300000
Packaging Details: Plywood Cases
Delivery Time: 60-90days
Payment Terms: L/C, T/T
Supply Ability: 10sets
Name: |
Vacuum Dryer |
Type: |
Double Conical Vacuum Dryer |
Total Volume: |
100-500L |
Working Volume: |
50-2500L |
Total Weight: |
825-6000kg |
Heating Area: |
1.16-14.1㎡ |
Warranty: |
1 Year |
Heating Source: |
Hot Water/Steam/Thermal Oil |
Drying Efficiency: |
90% |
Rotating Height: |
1810-4180 |
Usage: |
Biochemistry |
Material: |
SS304 316 |
Name: |
Vacuum Dryer |
Type: |
Double Conical Vacuum Dryer |
Total Volume: |
100-500L |
Working Volume: |
50-2500L |
Total Weight: |
825-6000kg |
Heating Area: |
1.16-14.1㎡ |
Warranty: |
1 Year |
Heating Source: |
Hot Water/Steam/Thermal Oil |
Drying Efficiency: |
90% |
Rotating Height: |
1810-4180 |
Usage: |
Biochemistry |
Material: |
SS304 316 |

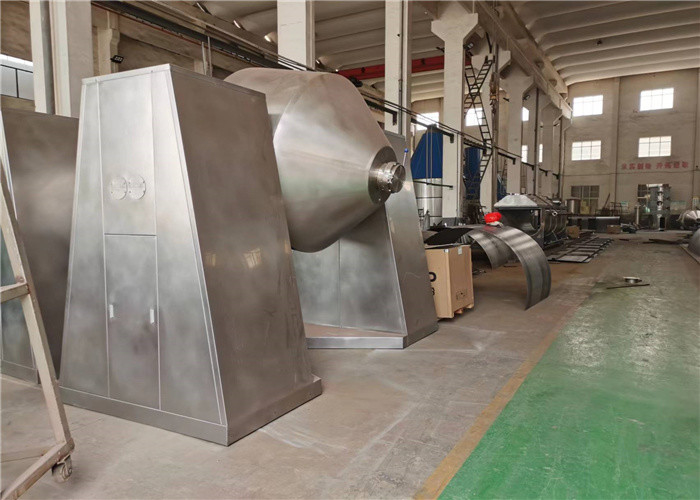

CE Approved Speed Rotary Cone High Quality Double Conical Revolving Vacuum Dryer
Product Description
Confined to the surface of thermal-energy (such as hot water or low pressure steam the HTF), the heat was passed in the shell dry materials.
In the drive, as slowly rotating the tank, the tank materials continuously mixed, so as to achieve the purpose of strengthening drying.
Materials in a vacuum, steam decline in the material surface water (solvent) reached saturation point and evaporation, and the vacuum pump from the timely recovery. Materials internal water (solvent) continuously to the surface infiltration, evaporation from the three ongoing process, the material in a very short time to dry purpose.
Apply chemical, pharmaceutical, food and other industries powdery, granular and fiber concentration, mixing, drying and low-temperature drying of materials needed (such as biochemical products more easily applied to oxidation, volatile, thermosensitive, strong stimulation, toxic materials, and not allow the destruction of crystalline materials dry.
Principle
As a specialized company in drying industry, we supply hundred sets to the customers every year. As for working medium, it may be thermal oil or steam or hot water. For drying the adhesive raw material, we have designed specially a stirring plate buffer for you. The biggest may be 8000L. Let heat source (for example, low pressure steam or thermal oil) pass through the sealed jacket. The heat will be transmitted to raw material to be dried through inner shell;Under driving of power, the tank is rotated slowly and the raw material inside it is mixed continuously. The purpose of reinforced drying can be realized; The raw material is under vacuum. The drop of steam pressure makes the moisture (solvent) at the surface of raw material reach the state of saturation and evaporate. The solvent will be discharged through vacuum pump and recovered in time. The inner moisture (solvent) of raw material will infiltrate, evaporate and discharge continuously. The three processes are carried out unceasingly and the purpose of drying can berealized within a short time.
Technical parameters
| Name | unit | 100 | 200 | 350 | 500 | 1000 | 2000 | 3000 | 4000 | 5000 |
| Total volume | L | 100 | 200 | 350 | 500 | 1000 | 2000 | 3000 | 4000 | 5000 |
| working volume | L | 50 | 100 | 175 | 250 | 500 | 1000 | 1500 | 2000 | 2500 |
| heating area | ㎡ | 1.16 | 1.5 | 2 | 2.63 | 4.61 | 7.5 | 10.2 | 12.1 | 14.1 |
| speed | rmp | 6 | 6 | 6 | 6 | 6 | 5 | 4 | 4 | 4 |
| power | kw | 0.75 | 1.1 | 1.5 | 1.5 | 3 | 4 | 5.5 | 7.5 | 7.5 |
| rotating height | mm | 1810 | 1910 | 2090 | 2195 | 2665 | 3055 | 3530 | 3800 | 4180 |
| total weight | kg | 825 | 1050 | 1350 | 1650 | 2070 | 3000 | 4500 | 5350 | 6000 |
Features
1.When oil is used to heat, use automatic constant temperature control. It can be used for drying biology products and mine. Its temperature of operation can be adjusted form 20-160 ℃ .
2.Compared to ordinal dryer, its heat efficiency will be 2 times higher.
The heat is indirect. So the raw material can not be polluted. It is in conformity with the requirement of GMP. It is easy in washing and maintenance.
Pre-service:
As a good and rich experience supplier, we should offer customer the best quality and best price of the machine.
1. Introduce the suitable product to the customer in detail, answer the question raised by customer carefully.
2. Make the suitabe project as the customer requirement and make sure the machine is suitable for the material.
Sale service:
(1). Ensure product with high quality and pre-commissioning before delivery. (2). Delivery on time. (3). Provide full set of documents as customer’s requirements.
After-sale service:
Provide considerate services to minimize clients’ worries.
1. Assist clients to prepare for the first construction scheme.
2. Install and debug the equipment.
3. Train the first-line operators.
4. Examine the equipment.
5. Take initiative to eliminate the troubles rapidly.
6. Provide technical support.
7. Establish long-term and friendly relationship.
Service commitment:
1. Provide clients one-year warranty to make sure the machine work well.
2. We always keep certain inventory level of spare parts, which means the replacements can be sent to you timely.
3. Send every client a preferential quotation.
