Product Details
Place of Origin: China
Brand Name: JingSu ShengMan
Certification: CE and ISO9001
Model Number: HZG
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: USD30,000-USD300,000
Packaging Details: Plywood Cases
Delivery Time: 60-90days
Payment Terms: L/C, T/T
Supply Ability: 10sets
Application: |
Industry |
Voltage: |
220v/380v |
Warranty: |
1 Year |
Color: |
Customer's Request |
Heating Source: |
Steam, Electric |
Condition: |
100% NEW |
Weight: |
2.9-104.9t |
Material: |
SUS304, SUS304 |
Capacity: |
0.5--10 Tons Per Hour |
Installation: |
Engineer Guidance Installation |
Revolution: |
2-7r/min |
Application: |
Industry |
Voltage: |
220v/380v |
Warranty: |
1 Year |
Color: |
Customer's Request |
Heating Source: |
Steam, Electric |
Condition: |
100% NEW |
Weight: |
2.9-104.9t |
Material: |
SUS304, SUS304 |
Capacity: |
0.5--10 Tons Per Hour |
Installation: |
Engineer Guidance Installation |
Revolution: |
2-7r/min |

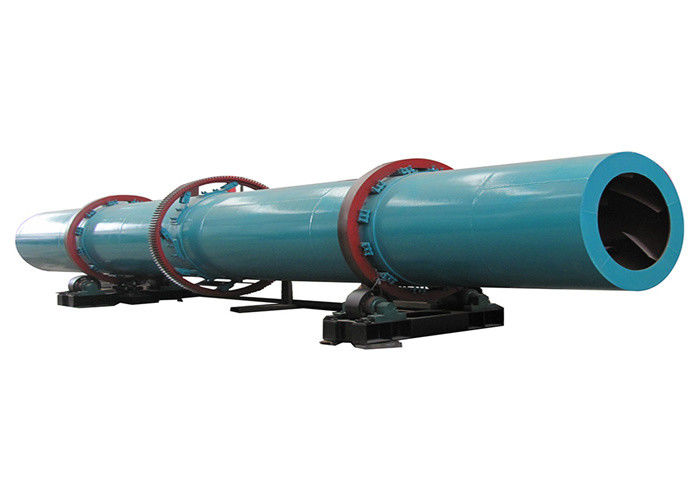

High Efficiency Industrial Big Coking Coal Casting Sand Three Cylinder Drum Dryer Machine
Description
The tumble dryer (rotary dryer) is simply a dryer that handles a large amount of material. Rotary drum dryers are generally suitable for granular materials, and can also be used to partially mix materials to dry viscous paste materials or materials with high moisture content. His advantages are large production capacity, wide application range, small flow resistance, large allowable fluctuation range in operation, and easy operation.
Working
The tumble dryer cylinder is a rotating cylinder slightly inclined from the horizontal line. The material is added from the higher end, the heat carrier enters from the lower end, and comes into countercurrent contact with the material, and the heat carrier and the material flow into the cylinder together. As the cylinder rotates, the material moves to the lower end under the effect of gravity. During the forward movement of the wet material in the cylinder, the heat is directly or indirectly obtained by the heating medium, so that the wet material is dried, and then sent out by a belt conveyor or a screw conveyor at the discharge end.
Technical parameters
| raw material | ore | vesicant | slag of blast furnace | coal |
| amount to be treated (kg/h) | 1000 | 466 | 15000 | 5000 |
| primary moisture(%) | 30 | 13 | 6 | 6.5 |
|
final moisture (%) |
15 | 0.3 | 1 | 0.1 |
| average diameter(mm) | 6.5 | 0.05 | 4.7 | 5 |
| amount of hot air(m³/kg) | 39000 | 5400 | 10750 | 16000 |
| temp of air at inlet (℃) | 600 | 165 | 500 | 570 |
| temp of material at outlet(℃5) | 42 | 100 | 75 | |
| way of heating | gas | electric | heavy oil | heavy oil |
| revolution (r.p.m) | 4 | 4 | 3.5 | 2 |
| length of dryer | 20 | 12 | 17 | 16 |
Features
1) The drying strength is high, and since the materials are highly dispersed in the gas stream, the entire surface of the particles is actively dry and effective.
2) Short drying time.
3) The air dryer has a simple structure, a small footprint, and is easy to build and maintain.
4) Large amount of processing, high thermal efficiency. When drying unbound water, the thermal efficiency can reach 60%.
5) The dryer achieves "zero horizontal thrust", which greatly reduces the wear of the brace wheel and ensures smooth and reliable operation of the barrel.
6) Dryer adopts "aligning roller device", so that the support of the roller and the roller will always be in linear contact, thus greatly reducing wear and power loss.
Our services
We have a professional engineer team responsible for the pre sales technical consultation, technical solution in the process of sales, installatin, commissioning and after sales service for customers. Every year, we will send engineers to our overseas customer site to help customers inspect and maintain the equipment.
FAQ
Q1: Are you trading company or manufacturer?
A: We are factory.
Q2: How long is your delivery time?
A: Generally it is 7-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity.
Q3: What is your payment method?
A: 30% of total price should be paid by T/T as down payment; 70% balance payment should be paid by T/T before delivery.
Q4: What Information should customers give us, So that we can be able to provide you suitable quotation and service.
What minerals are you separating?
What's the maximum size of your raw minerals?
How much capacity do you need per hour for your project?
