Product Details
Place of Origin: China
Brand Name: JingSu ShengMan
Certification: CE and ISO9001
Model Number: HZG
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: USD30,000-USD300,000
Packaging Details: Plywood Cases
Delivery Time: 60-90days
Payment Terms: L/C, T/T
Supply Ability: 10sets
Application: |
Industry |
Voltage: |
220v/380v |
Warranty: |
1 Year |
Color: |
Customer's Request |
Heating Source: |
Steam, Electric |
Condition: |
100% NEW |
Weight: |
2.9-104.9t |
Material: |
SUS304, SUS304 |
Capacity: |
0.5--10 Tons Per Hour |
Installation: |
Engineer Guidance Installation |
Revolution: |
2-7r/min |
Application: |
Industry |
Voltage: |
220v/380v |
Warranty: |
1 Year |
Color: |
Customer's Request |
Heating Source: |
Steam, Electric |
Condition: |
100% NEW |
Weight: |
2.9-104.9t |
Material: |
SUS304, SUS304 |
Capacity: |
0.5--10 Tons Per Hour |
Installation: |
Engineer Guidance Installation |
Revolution: |
2-7r/min |
Small Industrial Slurry Sludge Silica Sand Clay Tumble Dryer Machine Price with Good Heat Carrier
Description
Three-cylinder rotary dryer is mainly applied for stoving slag, sand, coal, fly ash, iron powder, ore, quartz sand and other particle materials. It has the following characteristics:
1. The cylinder protect itself, thermal efficiency can up to 95%.The whole length of the dryer reduced to 50% approximately than mono-cylinder and reduced land investment to 50% approximately
2. Cylinder adopts heat-resistant and wear-resistant steel plate welding with long service life and easy maintenance..High thermal efficiency , temperature of outer cylinder is 60or below(temperature of outer mono-cylinder is high to 150°C)
3. Low temperature of outlet, long-service of dust removal machine. It also can be directly connected to air box pulse bag filter.
4. Without gear and pinion drive, but wheel rotation applied, level operation of the complete machine makes system simple and reasonable.
5. Air heater could match boiling furnace, or oil furnace can also be applied, which can dry materials with size below 20mm.
6. Final moisture index can be adjusted according to requirements of customers.
Technical parameters
| raw material | ore | vesicant | slag of blast furnace | coal |
| amount to be treated (kg/h) | 1000 | 466 | 15000 | 5000 |
| primary moisture(%) | 30 | 13 | 6 | 6.5 |
|
final moisture (%) |
15 | 0.3 | 1 | 0.1 |
| average diameter(mm) | 6.5 | 0.05 | 4.7 | 5 |
| amount of hot air(m³/kg) | 39000 | 5400 | 10750 | 16000 |
| temp of air at inlet (℃) | 600 | 165 | 500 | 570 |
| temp of material at outlet(℃5) | 42 | 100 | 75 | |
| way of heating | gas | electric | heavy oil | heavy oil |
| revolution (r.p.m) | 4 | 4 | 3.5 | 2 |
| length of dryer | 20 | 12 | 17 | 16 |
Features
1) The drying strength is high, and since the materials are highly dispersed in the gas stream, the entire surface of the particles is actively dry and effective.
2) Short drying time.
3) The air dryer has a simple structure, a small footprint, and is easy to build and maintain.
4) Large amount of processing, high thermal efficiency. When drying unbound water, the thermal efficiency can reach 60%.
5) The dryer achieves "zero horizontal thrust", which greatly reduces the wear of the brace wheel and ensures smooth and reliable operation of the barrel.
6) Dryer adopts "aligning roller device", so that the support of the roller and the roller will always be in linear contact, thus greatly reducing wear and power loss.

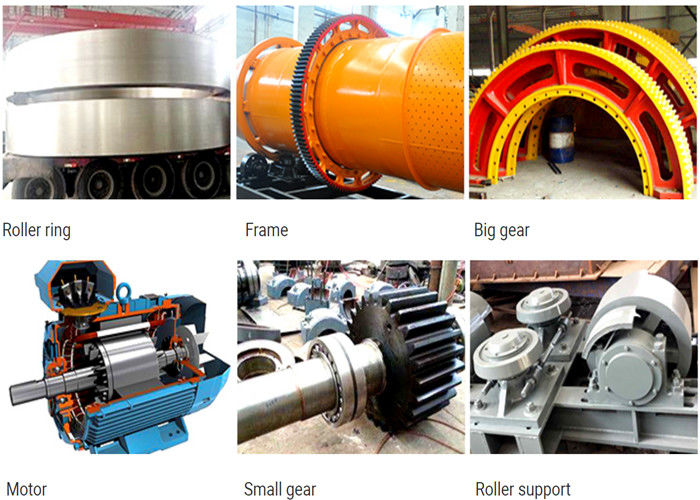

The Rotary Drier is widely used in the field of building materials, metallurgies, chemical industry, cement and so on. It can dry slag, coal powder, mining powder, clay, sand, limestone and so on. It is made of rotary body, lifting blade, driving device, supporting device etc. The dryer has advantages of reasonable structure, high efficiency, low energy consumption and convenient for transportation.
Our services
We have a professional engineer team responsible for the pre sales technical consultation, technical solution in the process of sales, installatin, commissioning and after sales service for customers. Every year, we will send engineers to our overseas customer site to help customers inspect and maintain the equipment.
FAQ
Q1: Are you trading company or manufacturer?
A: We are factory.
Q2: How long is your delivery time?
A: Generally it is 7-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity.
Q3: What is your payment method?
A: 30% of total price should be paid by T/T as down payment; 70% balance payment should be paid by T/T before delivery.
Q4: What Information should customers give us, So that we can be able to provide you suitable quotation and service.
What minerals are you separating?
What's the maximum size of your raw minerals?
How much capacity do you need per hour for your project?
