Product Details
Place of Origin: China
Brand Name: JingSu ShengMan
Certification: CE and ISO9001
Model Number: HG
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: USD30,000-USD300,000
Packaging Details: Plywood Cases
Delivery Time: 60-90days
Payment Terms: L/C, T/T
Supply Ability: 10sets
Application: |
Industry |
Voltage: |
220v/380v |
Warranty: |
1 Year |
Heating Source: |
Steam,powpower |
Condition: |
100% NEW |
Weight: |
850kh-6150kg |
Material: |
SUS304, SUS304 |
Evaporation Capacity: |
40-600 Kg/h |
Installation: |
Engineer Guidance Installation |
Power: |
1.1-8.6 Kw |
Heating Area: |
1.12-10.6 M2 |
Application: |
Industry |
Voltage: |
220v/380v |
Warranty: |
1 Year |
Heating Source: |
Steam,powpower |
Condition: |
100% NEW |
Weight: |
850kh-6150kg |
Material: |
SUS304, SUS304 |
Evaporation Capacity: |
40-600 Kg/h |
Installation: |
Engineer Guidance Installation |
Power: |
1.1-8.6 Kw |
Heating Area: |
1.12-10.6 M2 |

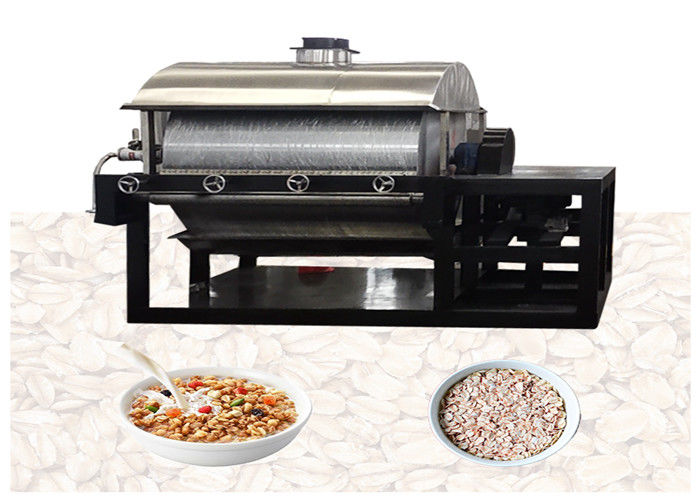

850-6150KG Fruit Paste Drying Drum Scraper Dryer with One Year Warranty
Description
Drum scraper dryer is a kind of internal heating conduction rotary continuous drying equipment . Rotating drum goes through its lower material tank, will attach a material film, heat is transfered to the drum wall through the pipes,then to the material film, so that the water in the material film is evaporated.The dried material is scraped away from the drum by the scraper on the surface of the drum.
Working
The working principle of drum dryer is to make the liquid or mud material form a film on the surface of the drum and is heated by water vapor or other heat carriers. The material is dried in the process of turning a circle, and the product is scraped down with a scraper, and the exposed surface of the drum contacts with the raw material again and forms a film for drying.
Technical parameters
| size | size of cylinder(mm) | heating area(㎡) | drying capacity(kg/h) | power kw | weight |
| HG-600 | 600*800 | 1.12 | 40-70 | 1.1 | 850 |
| HG-700 | 700*1000 | 1.65 | 60-90 | 2.05 | 1210 |
|
HG-800 |
800*1200 | 2.26 | 90-130 | 3.75 | 1700 |
| HG-1000 | 1000*1400 | 3.30 | 130-190 | 4.75 | 2100 |
| HG-1200 | 1200*1500 | 4.24 | 160-250 | 4.75 | 2650 |
| HG-1400 | 1400*1600 | 5.28 | 210-310 | 6.25 | 3220 |
| HG-1600 | 1600*1800 | 6.79 | 270-400 | 6.25 | 4350 |
| HG-1800 | 1800*2000 | 8.48 | 330-500 | 8.6 | 5100 |
| HG-1800A | 1800*2000 | 10.6 | 420-630 | 8.6 | 6150 |
It is suitable for the drying of viscous liquid materials in chemical, dyestuff, pharmaceutical, food, metallurgy, yeast and other industries.Widely used in: rice flour, oatmeal, αstarch, potato powder and other food drying products into sheet, powder and granule form.
Features of Drum Dryer for brewer's yeast/ feed yeast/food yeast:
1, large flexibility of operation: wide adaptability, can adapt to a variety of materials and different production requirements.
2, high thermal efficiency
3. Short drying time: the drying cycle of the material is generally only 10-300 seconds.
Pre-service:
As a good and rich experience supplier, we should offer customer the best quality and best price of the machine. We do something as following:
(1). introduce the suitable product to the customer in detail
(2). answer the question raised by customer carefully
(3). make the suitabe project as the customer requirement
(4). make sure the machine is suitable for the material
Sale service:
In order to fulfill the contract smoothly, establish a good cooperative relationship, here's are several points what we must do.
(1). ensure product with high quality and pre-commissioning before delivery
(2). delivery on time
(3). provide full set of documents as customer’s requirements
After-sale service:
Provide considerate services to minimize customers’ worries.
(1). Assist customers to prepare for the first construction scheme.
(2). Install and debuging the drying equipment.
(3). Train the first-line operators.
(4). Exame the drying equipment.
(5). Take initiative to eliminate the troubles rapidly.
(6). Provide technical support.
(7). Establish long-term and friendly relationship with all my customers.
Service commitment:
We provide customers 12-months warranty to make sure the machine work well, and always keep certain inventory level of spare parts, which means the replacements can be sent to you timely. At the same time, we send every customer a preferential and reasonable quotation.
