Product Details
Place of Origin: China
Brand Name: JingSu ShengMan
Certification: CE and ISO9001
Model Number: QGS
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: USD20000-USD300000
Packaging Details: Plywood Cases
Delivery Time: 60-90days
Payment Terms: L/C, T/T
Supply Ability: 10sets
Condition: |
New |
Warranty: |
1 Year |
Voltage: |
Customized |
Machine Type: |
Granulator |
Heating System: |
Steam,Electronic,oil |
Standard: |
GMP |
Material: |
Stainless Steel |
Power Of Fan: |
5.5-18.5 Kw |
Dimension: |
Requirement From Customer |
Application: |
Pharmaceutical, Food, Chemical |
Condition: |
New |
Warranty: |
1 Year |
Voltage: |
Customized |
Machine Type: |
Granulator |
Heating System: |
Steam,Electronic,oil |
Standard: |
GMP |
Material: |
Stainless Steel |
Power Of Fan: |
5.5-18.5 Kw |
Dimension: |
Requirement From Customer |
Application: |
Pharmaceutical, Food, Chemical |
FLG solid preparation plastic recycling granulator machine or Wet granulator For Pharmacy in Latin America
1. Equipment introduction:

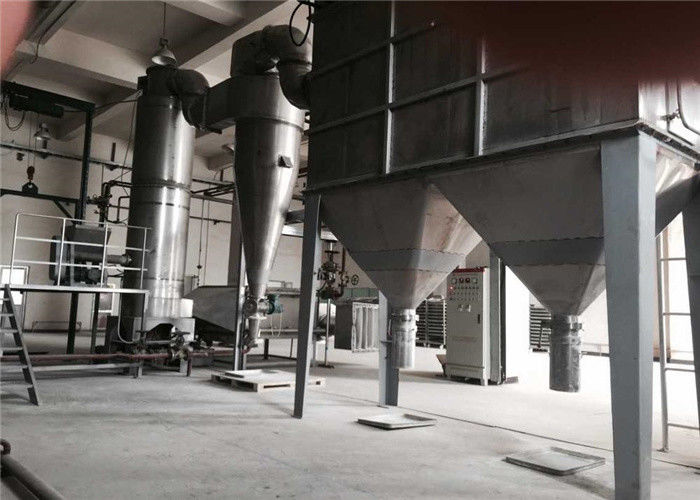

The dryer makes the hot air access to the crushing chamber to achieve the objective of drying the materials. The two processes crush and dry are usually complete by two independent operation unit, here we put the two operating unit combined into a device to finish two processes at the same time, it improves efficiency. Charging device through special design let the wet materials add into the drier. High speed rotating rotor at the bottom of drier passes mechanical energy to the materials making it quickly crushed. The crushed materials increase the contact area with hot air, water is evaporated quickly. The materials after drying and crushing are upward movement by air entrainment, and then through the classification it will leave the drier and be collected.
2. Technical Parameters
| Model | QGS-1 | QGS-2 | QGS-3 | QGS-4 | QGS-5 |
| Diameter of main body(mm) | 355 | 585 | 585 | 585 | 585 |
| Overall Height(mm) | 2800 | 3600 | 4100 | 4510 | 5515 |
| Quanity of Air(m³/min) | 20 | 50 | 100 | 200 | 360 |
| Weight(kg) | 1590 | 2495 | 3490 | 4995 | 8016 |
| Puliverizing Powder(kw) | 5.5 | 7.5 | 15 | 37 | 45 |
| Rotational Speed(r.p.m) | 4500 | 2600 | 1900 | 1150 | 600 |
| Graded Powder(kw) | 2.2 | 3 | 4 | 5 | 7.5 |
| Max.Rotational speed(r.p.m) | 2300 | 1700 | 1500 | 1100 | 800 |
3. Drying system characteristics:
(1)Set crushing drying, and classification as a whole, improve efficiency, product quality is
stable.
(2)Control classifier’s rotate speed can get the product with different grain size.
(3)Products after drying can achieve the eventual moisture content under 1%
(4)High heat transfer efficiency
Pre-service:
As a good and rich experience supplier, we should offer customer the best quality and best price of the machine.
1. Introduce the suitable product to the customer in detail, answer the question raised by customer carefully.
2. Make the suitabe project as the customer requirement and make sure the machine is suitable for the material.
Sale service:
(1). Ensure product with high quality and pre-commissioning before delivery. (2). Delivery on time. (3). Provide full set of documents as customer’s requirements.
After-sale service:
Provide considerate services to minimize clients’ worries.
1. Assist clients to prepare for the first construction scheme.
2. Install and debug the equipment.
3. Train the first-line operators.
4. Examine the equipment.
5. Take initiative to eliminate the troubles rapidly.
6. Provide technical support.
7. Establish long-term and friendly relationship.
Service commitment:
1. Provide clients one-year warranty to make sure the machine work well.
2. We always keep certain inventory level of spare parts, which means the replacements can be sent to you timely.
3. Send every client a preferential quotation.
