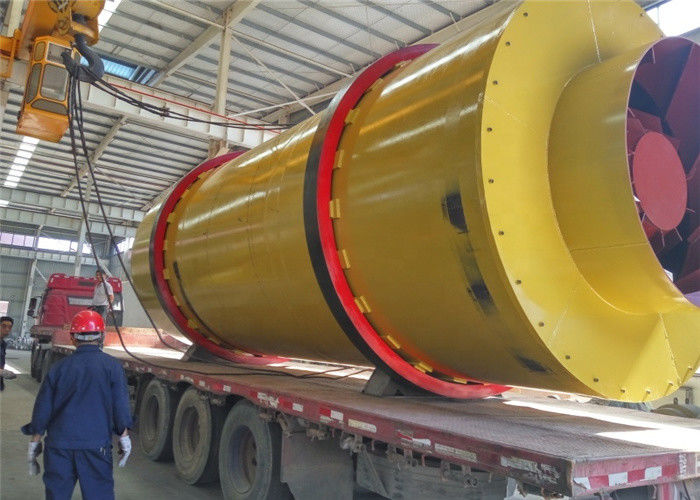

Three cylinder 3.5RPM Drum Drying Machine Ore Slag Clay Cement Dryer

Small Triple Pass Cement Industrial Slurry Sludge Silica Sand Clay Drum Drying Machine Price

Introduction

Three-cylinder rotary dryer is mainly applied for stoving slag, sand, coal, fly ash, iron powder, ore, quartz sand and other particle materials. It has the following characteristics:

1. The cylinder protect itself, thermal efficiency can up to 95%.The whole length of the dryer reduced to 50% approximately than mono-cylinder and reduced land investment to 50% approximately

2. Cylinder adopts heat-resistant and wear-resistant steel plate welding with long service life and easy maintenance..High thermal efficiency , temperature of outer cylinder is 60or below(temperature of outer mono-cylinder is high to 150°C)

3. Low temperature of outlet, long-service of dust removal machine. It also can be directly connected to air box pulse bag filter.

4. Without gear and pinion drive, but wheel rotation applied, level operation of the complete machine makes system simple and reasonable.

5. Air heater could match boiling furnace, or oil furnace can also be applied, which can dry materials with size below 20mm.

6. Final moisture index can be adjusted according to requirements of customers.

Application

The Rotary Drier is widely used in the field of building materials, metallurgies, chemical industry, cement and so on. It can dry slag, coal powder, mining powder, clay, sand, limestone and so on. It is made of rotary body, lifting blade, driving device, supporting device etc. The dryer has advantages of reasonable structure, high efficiency, low energy consumption and convenient for transportation.

Working principle

1.The material first goes into the inside drum, because there are the spiral shape boards fixed in the drum, when the dryer make rotary working, the spiral shape board will stir the material and make the material do movement.

2.When the material reaches the right side of the drum, it will go into the second drum for further drying.

3.The same working principle, the material then goes into outside drum, during the drying working process, the material will make three times drying, so the material can be dried completely in this process.

Technical parameters
