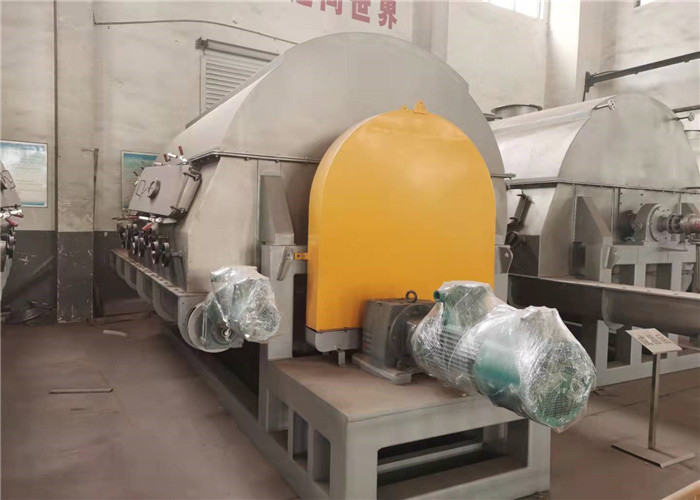

Custom Sand Clay Grain CE 40kg/H Drum Drying Machine Rotary

Hot product Customed Sand Clay Drum Dryer Machine Grain Rotary Drying Equipment

Small dryer including box and drum two parts, the main body adopts the reverse flow tower type internal circulation structure, the overall modular structure,which make it easy to disassemble and transport, small occupation, good drying quality, low labor operation intensity, low equipment cost.Integrated butt joint design of heating system and drum, compact structure, low energy consumption, high thermal efficiency.Small dryer conform to international continuous improvement of material drying quality, reduce energy consumption, reduce losses, conform to the green, quality, fresh drying concept.
1. can be widely used in river sand, sludge, coal mud, sawdust, sand, bean curd residue, chicken manure, organic fertilizer, feed, Chinese medicine residue, wine grains, vinegar grains and other fields material drying;
2. Take hot air as the drying medium, adopt the cycle drying process, the material is evenly heated and fully dehydrated, and the quality after drying is good;
3. The heating system of the dryer is more advanced. The converted heat energy can dry the materials without pollution.
4. equipped with automatic online temperature measurement, humidity measurement device, the degree of automation is greatly improved, high uniformity of drying;

Working principle of roller scraper dryer

Drying process: Let the liquid or muddy material form a film on the surface of the drum heated by steam or other heat carriers. The drum is dried in one revolution. The product is scraped off with a scraper, and the exposed surface of the drum comes into contact with the raw material again. And form a film to dry.
The drum scraper dryer uses a certain method to spread the liquid or pasty material on the drum (hollow metal cylinder) with a 0.1-1.5mm film. The drum can be heated with steam, hot water or thermal oil. When the drum rotates once, the material can be dried and scraped off the surface of the cylinder by a special scraper. The drum scraper dryer generally rotates at a speed of 4 to 6 rpm.
The drying of the paste-like material is to adjust the thickness of the material and to compact the material layer. On the side close to the feeding device, a material compression shaft is installed to make the material evenly spread on the drum. In order to make the material easier to fall off when the scraper discharges the material, before the scraping, the cold air pipe can also be used to blow a certain amount of cold air to cool the material.

Technical parameters

Features of drum scraper dryer
1. Large operation flexibility and wide adaptability, the operation flexibility of the drum dryer is very large, and can adapt to the requirements of multiple materials and different output;
2. The thermal efficiency of the roller scraper drying is high;
3. The drying time is short, the wet material film of the material to be dried on the outer wall of the drum is generally 0.3 to 1.5 mm, and the entire drying cycle takes only 10 to 60 s;
4. Large drying rate: Because the material film is very thin, the surface of the material film can maintain the drying strength of 15-50kg water/m2h;
5. Continuous operation, stable quality, labor saving, and uniform product can be obtained;
6. The inside of the machine is easy to clean, and it is easy to change the variety;
7. Exhaust gas does not take away materials, and no dust removal equipment is required.

Sale service:

In order to fulfill the contract smoothly, establish a good cooperative relationship, here's are several points what we must do.
(1). ensure product with high quality and pre-commissioning before delivery
(2). delivery on time
(3). provide full set of documents as customer’s requirements

After-sale service:
Provide considerate services to minimize customers’ worries.
(1). Assist customers to prepare for the first construction scheme.
(2). Install and debuging the drying equipment.
(3). Train the first-line operators.
(4). Exame the drying equipment.
(5). Take initiative to eliminate the troubles rapidly.
(6). Provide technical support.
(7). Establish long-term and friendly relationship with all my customers.

Service commitment:
We provide customers 12-months warranty to make sure the machine work well, and always keep certain inventory level of spare parts, which means the replacements can be sent to you timely. At the same time, we send every customer a preferential and reasonable quotation.
