Rewery Yeast Drum Drying Equipment Ss316L In Feed Industry Process

Product Details

Place of Origin: China

Brand Name: JingSu ShengMan

Certification: CE and ISO9001

Model Number: Rotary Drum Dryer

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: USD30,000-USD300,000

Packaging Details: Plywood Cases

Delivery Time: 60-90days

Payment Terms: L/C, T/T

Supply Ability: 10sets

Get Best Price
High Light:

Rewery Yeast Drum Drying Equipment

,

Ss316L Drum Drying Equipment

,

Feed Industry Process Drum Drying Equipment

Type:
Drum Drying Equipment
Usage:
Feed Industry Process
Voltage:
220v/380v
Warranty:
1 Year
Heating Source:
Steam,powpower
Condition:
100% NEW
Material:
304 316L
Evaporation Capacity:
40-600kg/h
Installation:
Engineer Guidance Installation
Power:
1.1-8.6kw
Heating Area:
1.12-10.6 M2
Product Name:
Yeast Dryer
Type:
Drum Drying Equipment
Usage:
Feed Industry Process
Voltage:
220v/380v
Warranty:
1 Year
Heating Source:
Steam,powpower
Condition:
100% NEW
Material:
304 316L
Evaporation Capacity:
40-600kg/h
Installation:
Engineer Guidance Installation
Power:
1.1-8.6kw
Heating Area:
1.12-10.6 M2
Product Name:
Yeast Dryer
Rewery Yeast Drum Drying Equipment Ss316L In Feed Industry Process

Factory supply Brewery Yeast Drum Drying Equipment in Feed Industry Process





Introduction



Drum yeast dryer is divided into single dryer and double dryer, which can be used for drying a variety of slurries, especially suitable for recycling waste yeast in breweries, and dryers of different specifications. It can meet the needs of breweries with an annual output of 50,000 to 300,000 tons. The machine is also suitable for drying treatment in food, chemical, pharmaceutical and other industries.



The drum dryer is a continuous operation device that dries the liquid phase material or ribbon material attached to the outer wall of the cylinder by means of heat conduction through a rotating cylinder. The material liquid to be dried flows into the material receiving tank of the drum dryer from the upper tank. The drying drum is driven by the transmission device, and the material is formed by the filming device to form a material film on the wall of the drum. The cylinder is heated continuously, and the moisture of the material film is vaporized by the heat transfer from the cylinder wall, and the material is scraped off by a scraper, and then conveyed to the storage tank through a screw for packaging. It has high thermal efficiency and can be operated continuously, so it is widely used in the drying of liquid materials or strip-shaped materials, and is more suitable for paste-like and viscous materials.

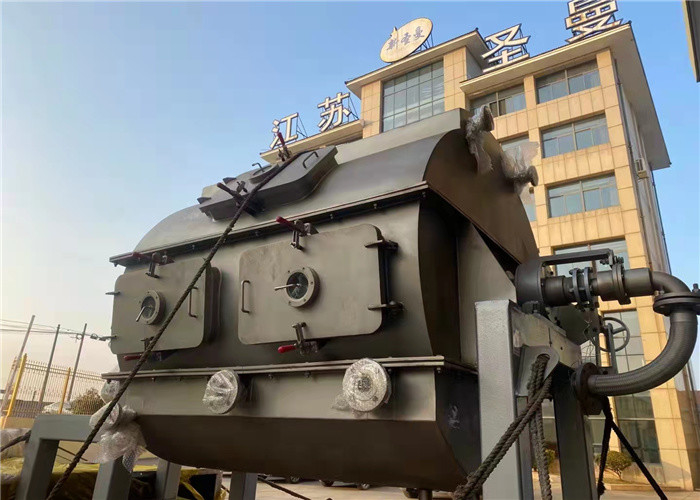

Rewery Yeast Drum Drying Equipment Ss316L In Feed Industry Process 0



Working principle of roller scraper dryer


Drying process: Let the liquid or muddy material form a film on the surface of the drum heated by steam or other heat carriers. The drum is dried in one revolution. The product is scraped off with a scraper, and the exposed surface of the drum comes into contact with the raw material again. And form a film to dry.
The drum scraper dryer uses a certain method to spread the liquid or pasty material on the drum (hollow metal cylinder) with a 0.1-1.5mm film. The drum can be heated with steam, hot water or thermal oil. When the drum rotates once, the material can be dried and scraped off the surface of the cylinder by a special scraper. The drum scraper dryer generally rotates at a speed of 4 to 6 rpm.
The drying of the paste-like material is to adjust the thickness of the material and to compact the material layer. On the side close to the feeding device, a material compression shaft is installed to make the material evenly spread on the drum. In order to make the material easier to fall off when the scraper discharges the material, before the scraping, the cold air pipe can also be used to blow a certain amount of cold air to cool the material.





Technical parameters



size size of cylinder(mm) heating area(㎡) drying capacity(kg/h) power kw weight
HG-600 600*800 1.12 40-70 1.1 850
HG-700 700*1000 1.65 60-90 2.05 1210

HG-800

800*1200 2.26 90-130 3.75 1700
HG-1000 1000*1400 3.30 130-190 4.75 2100
HG-1200 1200*1500 4.24 160-250 4.75 2650
HG-1400 1400*1600 5.28 210-310 6.25 3220
HG-1600 1600*1800 6.79 270-400 6.25 4350
HG-1800 1800*2000 8.48 330-500 8.6 5100
HG-1800A 1800*2000 10.6 420-630 8.6 6150







Rewery Yeast Drum Drying Equipment Ss316L In Feed Industry Process 1



Features of drum scraper dryer
- Lower consumption and operation cost
- Capable to dry different kinds of product
- Stable operation
- Uniform dried product
- Both dryer and calciner, operation Temp. Up to 1000°C
- Heat source can be steam, electricity, coal, natural gas etc.





Rewery Yeast Drum Drying Equipment Ss316L In Feed Industry Process 2





Pre-service:
As a good and rich experience supplier, we should offer customer the best quality and best price of the machine. We do something as following:

(1). introduce the suitable product to the customer in detail

(2). answer the question raised by customer carefully

(3). make the suitabe project as the customer requirement

(4). make sure the machine is suitable for the material

Sale service:

In order to fulfill the contract smoothly, establish a good cooperative relationship, here's are several points what we must do.
(1). ensure product with high quality and pre-commissioning before delivery
(2). delivery on time
(3). provide full set of documents as customer’s requirements

After-sale service:
Provide considerate services to minimize customers’ worries.
(1). Assist customers to prepare for the first construction scheme.
(2). Install and debuging the drying equipment.
(3). Train the first-line operators.
(4). Exame the drying equipment.
(5). Take initiative to eliminate the troubles rapidly.
(6). Provide technical support.
(7). Establish long-term and friendly relationship with all my customers.

Service commitment:
We provide customers 12-months warranty to make sure the machine work well, and always keep certain inventory level of spare parts, which means the replacements can be sent to you timely. At the same time, we send every customer a preferential and reasonable quotation.
