Product Details
Place of Origin: Changzhou
Certification: CE
Model Number: HG series
Payment & Shipping Terms
Minimum Order Quantity: 1SET
Price: USD 10,000-200,000
Packaging Details: EXPORTING
Delivery Time: 30-90
Payment Terms: T/T
Supply Ability: 10 SETS PER MONTH
Capacity: |
200-800kg/h |
Drum Speed: |
0-20rpm |
Steam Consumption: |
100-1575kg/h |
Product Name: |
Rotary Cyclinder Dryer |
Heating Method: |
Electric Heating |
Operation Mode: |
Automatic |
Power: |
220V/50Hz |
Dimension: |
OPTIONAL |
Capacity: |
200-800kg/h |
Drum Speed: |
0-20rpm |
Steam Consumption: |
100-1575kg/h |
Product Name: |
Rotary Cyclinder Dryer |
Heating Method: |
Electric Heating |
Operation Mode: |
Automatic |
Power: |
220V/50Hz |
Dimension: |
OPTIONAL |
Effective Steam Consumption Drum Drying Machine with Electric Heating

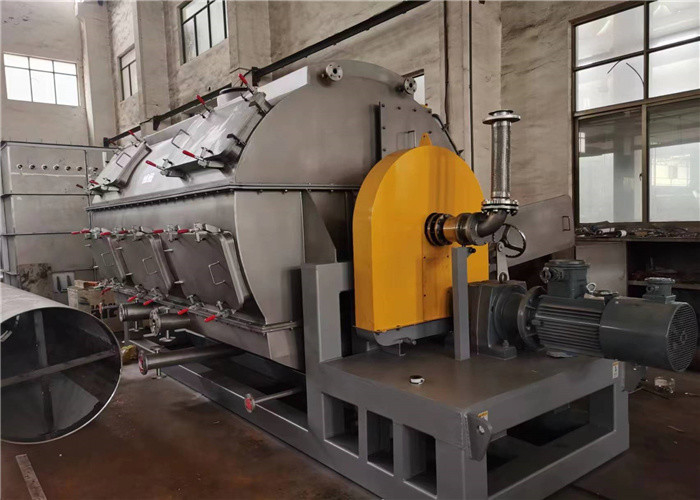

Drum Flaker Dryer, also known as Drum Roller Dryer, is a drum drying machine with high efficiency and heavy weight. It consists of a rotating drum made of stainless steel 304 or 316L, a PLC control system, and a heat source of steam. The effective heating area of Drum Flaker Dryer ranges from 1.12-10.6㎡, and its weight varies from 850kg to 6150kg. It is an ideal choice for drying and cooling various materials, such as paste, granules, flakes, powder and the like.
| Parameter | Description |
|---|---|
| Power | 220V/50Hz |
| Heating Temperature | 0-200℃ |
| Capacity | 200-800kg/h |
| Heating Method | Electric Heating |
| Heat resource | Steam |
| Application | Food, Chemical, Medicine |
| Steam consumption | 100-1575kg/h |
| Model | Single or Double Cyclinder |
| Product Name | Drum Vacuum Dehydrator, Rotary Drum Dryer Machine, Rotary Drum Drier |
| Operation Mode | Automatic |
| size | size of cylinder(mm) | heating area(㎡) | drying capacity(kg/h) | power kw | weight |
| HG-600 | 600*800 | 1.12 | 40-70 | 1.1 | 850 |
| HG-700 | 700*1000 | 1.65 | 60-90 | 2.05 | 1210 |
| HG-800 | 800*1200 | 2.26 | 90-130 | 3.75 | 1700 |
| HG-1000 | 1000*1400 | 3.30 | 130-190 | 4.75 | 2100 |
| HG-1200 | 1200*1500 | 4.24 | 160-250 | 4.75 | 2650 |
| HG-1400 | 1400*1600 | 5.28 | 210-310 | 6.25 | 3220 |
| HG-1600 | 1600*1800 | 6.79 | 270-400 | 6.25 | 4350 |
| HG-1800 | 1800*2000 | 8.48 | 330-500 | 8.6 | 5100 |
| HG-1800A | 1800*2000 | 10.6 | 420-630 | 8.6 | 6150 |
The Rotating Drum Dryer, also known as the Drum Rotary Dryer or scraper drum dryer, is a kind of industrial drying equipment and is widely used in various industries. The HG series drum drying machine manufactured by Changzhou has a model number of HG, and it is certificated with CE. The minimum order quantity is one set and the price ranges from USD 10,000 to 200,000. The exporting package and delivery time are also available, with a standard delivery time of 30-90 days and payment terms of T/T. The supply ability of this HG series drum drying machine is up to 10 sets per month. The producting material is SS304 316L, with an effective heating area ranging from 1.12-10.6㎡ and optional dimension. It is controled by a PLC control system and heated by steam.
Drum drying machine is a machine used to reduce the moisture content of liquid or semi-liquid materials. Our company provides expert technical support and services for our drum drying machines.
We provide installation and start-up services for our drum drying machines. Our team of professionals will be on-site to help you install the machine, complete the start-up process, and ensure the machine is in proper working condition.
We offer maintenance and repair services for our drum drying machines. Our experienced technicians will inspect the machine, identify any problems, and provide necessary repairs or parts replacements to ensure the machine is in good working condition.
We provide comprehensive training services for our drum drying machines. Our team will provide hands-on training and instruction on how to operate the machine safely and efficiently, as well as how to perform basic maintenance and repairs.
Packaging and Shipping of Drum Drying Machine:
The Drum Drying Machine will be packaged in a box with foam protection. The box size will depend on the size of the machine. The box and contents will be wrapped in heavy-duty plastic wrap and sealed. The box with the Drum Drying Machine will be shipped via an insured carrier to ensure safe delivery.
