Product Details
Place of Origin: Changzhou
Certification: CE
Model Number: HG series
Payment & Shipping Terms
Minimum Order Quantity: 1SET
Price: USD 10,000-200,000
Packaging Details: EXPORTING
Delivery Time: 30-90
Payment Terms: T/T
Supply Ability: 10 SETS PER MONTH
Model: |
Single Or Double Cyclinder |
Steam Consumption: |
100-1575kg/h |
Weight: |
850kg-6150kg |
Power: |
220V/50Hz |
Producting Material: |
SS304 316L |
Heating Temperature: |
0-200℃ |
Dimension: |
OPTIONAL |
Effective Heating Area: |
1.12-10.6㎡ |
Model: |
Single Or Double Cyclinder |
Steam Consumption: |
100-1575kg/h |
Weight: |
850kg-6150kg |
Power: |
220V/50Hz |
Producting Material: |
SS304 316L |
Heating Temperature: |
0-200℃ |
Dimension: |
OPTIONAL |
Effective Heating Area: |
1.12-10.6㎡ |

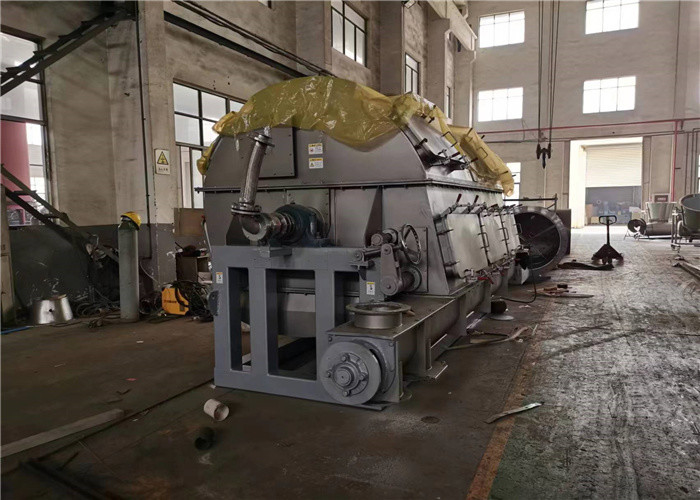

Drum Drying Machine is a kind of rotary drum dryer machine, also known as a drum flaker dehydrator. It is mainly used for drying and dehydration of materials, and can handle materials with large capacity from 200 kg/h to 800kg/h. The drum dryer adopts electric heating method, with the power of motor from 1.1 to 8.6 Kw. The heat resource is steam, and the producting material is SS304 316L. Moreover, this rotary drum vacuum dryer is highly efficient and can save lots of energy.
| Parameter | Specification |
|---|---|
| Heating Temperature | 0-200℃ |
| Producting material | SS304 316L |
| Operation Mode | Automatic |
| Power | 220V/50Hz |
| Power of motor | 1.1-8.6Kw |
| Heat resource | Steam |
| Heating Method | Electric Heating |
| Weight | 850kg-6150kg |
| Capacity | 200-800kg/h |
| Dimension | OPTIONAL |
| size | size of cylinder(mm) | heating area(㎡) | drying capacity(kg/h) | power kw | weight |
| HG-600 | 600*800 | 1.12 | 40-70 | 1.1 | 850 |
| HG-700 | 700*1000 | 1.65 | 60-90 | 2.05 | 1210 |
| HG-800 | 800*1200 | 2.26 | 90-130 | 3.75 | 1700 |
| HG-1000 | 1000*1400 | 3.30 | 130-190 | 4.75 | 2100 |
| HG-1200 | 1200*1500 | 4.24 | 160-250 | 4.75 | 2650 |
| HG-1400 | 1400*1600 | 5.28 | 210-310 | 6.25 | 3220 |
| HG-1600 | 1600*1800 | 6.79 | 270-400 | 6.25 | 4350 |
| HG-1800 | 1800*2000 | 8.48 | 330-500 | 8.6 | 5100 |
| HG-1800A | 1800*2000 | 10.6 | 420-630 | 8.6 | 6150 |
The HG series Drum Flaker Dehydrator, also known as Drum drying machine or Drum Flaker Dryer, is ideal for a wide range of applications in many industries, including medicine, food, chemical, and other industries.
It is produced in Changzhou, and certified with CE certificate. The minimum order quantity is 1SET, and price is USD 10,000-200,000. Packaging is for exporting, and delivery time is 30-90. Payment terms are T/T. The supply ability is 10 SETS PER MONTH.
The Drum Flaker Dehydrator has a capacity of 200-800kg/h, and it is available in Single Or Double Cyclinder model. The effective heating area is 1.12-10.6㎡, and it is heated by electric heating. The weight of the machine is 850kg-6150kg.
At our company, we provide technical support and service for our drum drying machine. Our technicians are experienced and knowledgeable in this field, and are available to help you troubleshoot any problems you may have with your machine.
We can provide you with technical advice, installation assistance, and regular maintenance and repair services. Our team can also help you with the setup and installation of the machine, ensuring it is working correctly.
We are committed to providing you with the best customer service and technical support. Our experts are always ready to assist you with any questions or concerns you may have.
If you need assistance or have any questions, please do not hesitate to contact us. We are always here to help you.
Packaging and Shipping for Drum Drying Machine:
