Product Details
Place of Origin: Changzhou
Certification: CE
Model Number: HG series
Payment & Shipping Terms
Minimum Order Quantity: 1SET
Price: USD 10,000-200,000
Packaging Details: EXPORTING
Delivery Time: 30-90
Payment Terms: T/T
Supply Ability: 10 SETS PER MONTH
Power Of Motor: |
1.1-8.6 Kw |
Weight: |
850kg-6150kg |
Model: |
Single Or Double Cyclinder |
Control System: |
PLC Control |
Product Name: |
Rotary Cyclinder Dryer |
Effective Heating Area: |
1.12-10.6㎡ |
Heating Method: |
Electric Heating |
Power: |
220V/50Hz |
Power Of Motor: |
1.1-8.6 Kw |
Weight: |
850kg-6150kg |
Model: |
Single Or Double Cyclinder |
Control System: |
PLC Control |
Product Name: |
Rotary Cyclinder Dryer |
Effective Heating Area: |
1.12-10.6㎡ |
Heating Method: |
Electric Heating |
Power: |
220V/50Hz |

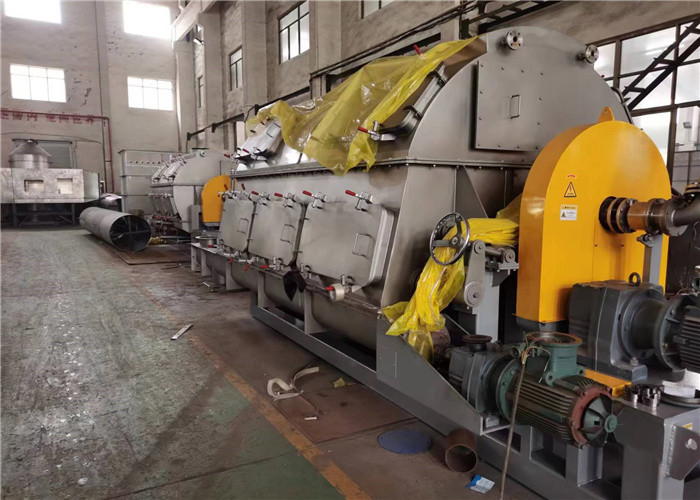

The Drum Drying Machine is a robust, reliable and efficient industrial dehydrator that is used in a variety of applications, such as food, chemical and medicine. It is made of high quality SS304 and 316L material and designed with a single or double cyclinder, allowing for a motor power of 1.1 to 8.6 kW and a heating temperature range of 0 to 200℃. The Drum Roller Dryer is known for its superior design, safety, and efficiency. It is also known as Drum Flaker Dehydrator and is widely used in industries for efficient drying and dehydration of materials. It is highly efficient and cost-effective, and provides excellent product quality. The Drum Flaker Dehydrator is an ideal solution for drying and dehydration of various materials in a safe and efficient manner.
| size | size of cylinder(mm) | heating area(㎡) | drying capacity(kg/h) | power kw | weight |
| HG-600 | 600*800 | 1.12 | 40-70 | 1.1 | 850 |
| HG-700 | 700*1000 | 1.65 | 60-90 | 2.05 | 1210 |
| HG-800 | 800*1200 | 2.26 | 90-130 | 3.75 | 1700 |
| HG-1000 | 1000*1400 | 3.30 | 130-190 | 4.75 | 2100 |
| HG-1200 | 1200*1500 | 4.24 | 160-250 | 4.75 | 2650 |
| HG-1400 | 1400*1600 | 5.28 | 210-310 | 6.25 | 3220 |
| HG-1600 | 1600*1800 | 6.79 | 270-400 | 6.25 | 4350 |
| HG-1800 | 1800*2000 | 8.48 | 330-500 | 8.6 | 5100 |
| HG-1800A | 1800*2000 | 10.6 | 420-630 | 8.6 | 6150 |
Drum Drying Machine from Changzhou is a rotary drying machine and drum vacuum dehydrator with a capacity of 20-150KG/H. It has automatic control and electric heating with a heating temperature of 0-200℃. It has an effective heating area of 1.12-10.6㎡ with a weight of 850kg-6150kg and power of 220V/50Hz. It comes with CE certification, minimum order quantity of 1SET, price of USD 10,000-200,000, export packaging, delivery time of 30-90 days, and T/T payment terms. It has a supply ability of 10 SETS PER MONTH. Model Number: HG series.
We provide technical support and service for our Drum Drying Machines. Our experienced technicians can provide assistance in the installation, maintenance and repair of the machine. We also provide troubleshooting advice and can provide spare parts for the machines.
We offer a range of support options, including telephone and email support, and on-site visits. We also have an online forum where customers can discuss their experiences with the machine and ask questions.
We are committed to providing the highest quality of service and support for our customers, and we take pride in our customer satisfaction.
Packaging and Shipping for Drum Drying Machine:
The Drum Drying Machine will be packaged in a standard wooden box in order to protect it from damage during transport. The box will be sealed to ensure no dirt or dust can enter the box during the shipping process. The box will also be labeled with the name, model number, and weight of the Drum Drying Machine.
The Drum Drying Machine will be shipped via an international courier service. The courier service will ensure the safe and timely delivery of the Drum Drying Machine. The courier service will also provide tracking information, so that the location of the Drum Drying Machine can be monitored during its transit.
