Product Details
Place of Origin: Changzhou
Certification: CE
Model Number: HG series
Payment & Shipping Terms
Minimum Order Quantity: 1SET
Price: USD 10,000-200,000
Packaging Details: EXPORTING
Delivery Time: 30-90
Payment Terms: T/T
Supply Ability: 10 SETS PER MONTH
Power: |
220V/50Hz |
Control System: |
PLC Control |
Drum Speed: |
0-20rpm |
Heating Method: |
Electric Heating |
Steam Consumption: |
100-1575kg/h |
Heat Resource: |
Steam |
Operation Mode: |
Automatic |
Power Of Motor: |
1.1-8.6 Kw |
Power: |
220V/50Hz |
Control System: |
PLC Control |
Drum Speed: |
0-20rpm |
Heating Method: |
Electric Heating |
Steam Consumption: |
100-1575kg/h |
Heat Resource: |
Steam |
Operation Mode: |
Automatic |
Power Of Motor: |
1.1-8.6 Kw |

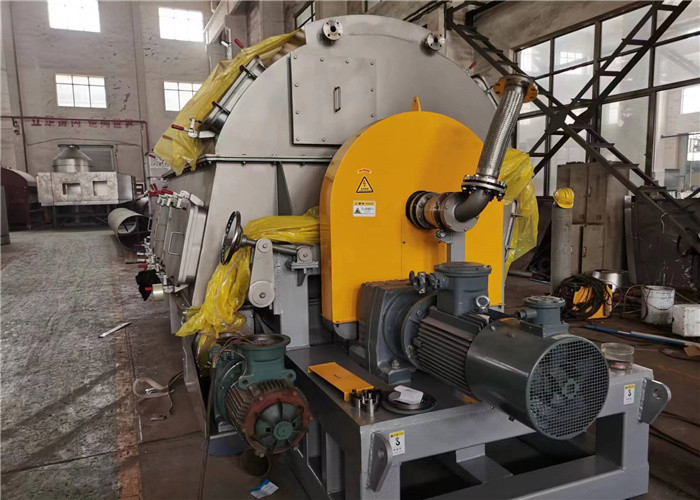

The Drum Drying Machine is a kind of industrial drying equipment that utilizes rotary drums to reduce the moisture content of materials. It is widely used in the food, chemical and medicine industry.
This Drum Drying Machine features an electric heating method and automatic operation mode. It is available in both single and double-cylinder models, with an effective heating area of 1.12-10.6㎡.
Also known as Drum Flaker Dehydrator or Rotary Drum Dryer Machine, our Drum Flaker Dryer are effective, energy-efficient and easy to use. It is designed for faster drying and providing higher production rates.
| Parameters | Values |
|---|---|
| Capacity | 200-800kg/h |
| Weight | 850kg-6150kg |
| Control System | PLC Control |
| Steam consumption | 100-1575kg/h |
| Dimension | OPTIONAL |
| Heating Method | Electric Heating |
| Power | 220V/50Hz |
| Operation Mode | Automatic |
| Heating Temperature | 0-200℃ |
| Model | Single Or Double Cyinder |
| Product | Drum Drying Machine |
| size | size of cylinder(mm) | heating area(㎡) | drying capacity(kg/h) | power kw | weight |
| HG-600 | 600*800 | 1.12 | 40-70 | 1.1 | 850 |
| HG-700 | 700*1000 | 1.65 | 60-90 | 2.05 | 1210 |
| HG-800 | 800*1200 | 2.26 | 90-130 | 3.75 | 1700 |
| HG-1000 | 1000*1400 | 3.30 | 130-190 | 4.75 | 2100 |
| HG-1200 | 1200*1500 | 4.24 | 160-250 | 4.75 | 2650 |
| HG-1400 | 1400*1600 | 5.28 | 210-310 | 6.25 | 3220 |
| HG-1600 | 1600*1800 | 6.79 | 270-400 | 6.25 | 4350 |
| HG-1800 | 1800*2000 | 8.48 | 330-500 | 8.6 | 5100 |
| HG-1800A | 1800*2000 | 10.6 | 420-630 | 8.6 | 6150 |
The Drum Drying Machine HG series is a professional rotary drying machine. It is widely used in Drum Flaker Dehydrator, Drum Vacuum Dehydrator, and other related industries. It is made of premium-grade stainless steel SS304 316L materials, and it is certified by CE for quality and safety. It features a powerful motor of 1.1-8.6Kw, and it is controlled by PLC Control system. This machine is highly efficient and has a weight of 850kg-6150kg. It is available in optional dimensions. The minimum order quantity is 1SET, and the price ranges from USD 10,000-200,000. The supply ability is 10 SETS PER MONTH. The packaging is suitable for exporting and the delivery time is 30-90 days. The payment terms are T/T.
Our drum drying machine is backed by comprehensive technical support and service. We provide a wide range of services to meet the needs of our customers, including:
We are dedicated to providing the highest level of customer service and support. Our team of experienced technicians and engineers are available to provide technical assistance and answer any questions you may have about our drum drying machine.
Packaging and Shipping for Drum Drying Machine:
The Drum Drying Machine is packed and shipped in a secure wooden box with foam padding. The box is designed to protect the machine from shock, vibration, and dust. It is also sealed with strong tape to ensure no moisture can enter and damage the machine.
We guarantee a safe and secure delivery of the Drum Drying Machine to your specified address.
