Product Details
Place of Origin: Changzhou
Certification: CE
Model Number: HG series
Payment & Shipping Terms
Minimum Order Quantity: 1SET
Price: USD 10,000-200,000
Packaging Details: EXPORTING
Delivery Time: 30-90
Payment Terms: T/T
Supply Ability: 10 SETS PER MONTH
Application: |
Food, Chemical ,medicine |
Steam Consumption: |
100-1575kg/h |
Power: |
220V/50Hz |
Model: |
Single Or Double Cyclinder |
Control System: |
PLC Control |
Dimension: |
OPTIONAL |
Heat Resource: |
Steam |
Heating Temperature: |
0-200℃ |
Application: |
Food, Chemical ,medicine |
Steam Consumption: |
100-1575kg/h |
Power: |
220V/50Hz |
Model: |
Single Or Double Cyclinder |
Control System: |
PLC Control |
Dimension: |
OPTIONAL |
Heat Resource: |
Steam |
Heating Temperature: |
0-200℃ |

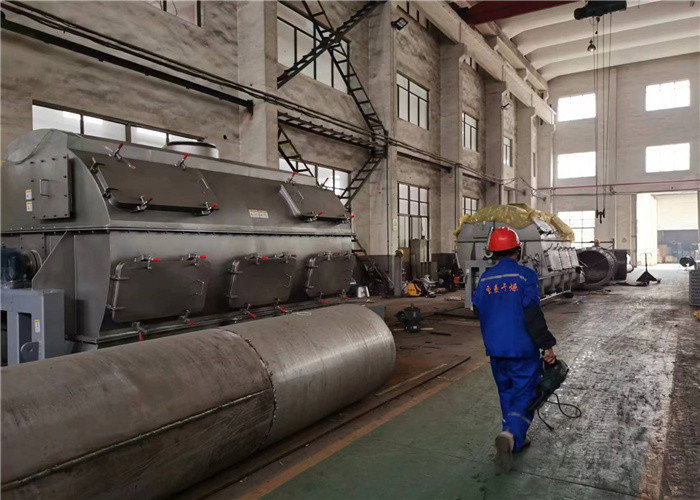

The Drum Drying Machine is a vacuum dehydrator and flaker dehydrator that features a rotary drum vacuum dryer. It is constructed with premium stainless steel materials such as SS304 and 316L, and has a wide range of models available, from single to double cylinders. The drum speed is adjustable from 0-20rpm, and the steam consumption ranges from 100-1575kg/h. It is relatively lightweight, with a weight of 850kg-6150kg. It is an ideal choice for a wide range of industrial drying needs, such as food processing, pharmaceutical, and chemical industries.
| size | size of cylinder(mm) | heating area(㎡) | drying capacity(kg/h) | power kw | weight |
| HG-600 | 600*800 | 1.12 | 40-70 | 1.1 | 850 |
| HG-700 | 700*1000 | 1.65 | 60-90 | 2.05 | 1210 |
| HG-800 | 800*1200 | 2.26 | 90-130 | 3.75 | 1700 |
| HG-1000 | 1000*1400 | 3.30 | 130-190 | 4.75 | 2100 |
| HG-1200 | 1200*1500 | 4.24 | 160-250 | 4.75 | 2650 |
| HG-1400 | 1400*1600 | 5.28 | 210-310 | 6.25 | 3220 |
| HG-1600 | 1600*1800 | 6.79 | 270-400 | 6.25 | 4350 |
| HG-1800 | 1800*2000 | 8.48 | 330-500 | 8.6 | 5100 |
| HG-1800A | 1800*2000 | 10.6 | 420-630 | 8.6 | 6150 |
The Rotaty drying machine, also known as Drum Flaker Dehydrator or Drum drying machine, is a popular drying equipment in the market. It is produced by Changzhou company and has a model number of HG series. The product is certified by CE and the minimum order quantity is 1SET. The price of this product ranges from USD 10,000-200,000, and the packaging for exporting is also available. The delivery time normally takes 30-90 days, and customers can pay by T/T. The supply ability is 10 SETS PER MONTH. The power of the drum drying machine is 220V/50Hz, and its weight is 850kg-6150kg. The drum speed can be set from 0-20rpm, and the producting material is made of SS304 316L. The control system is PLC Control.
We provide full technical support and service for our Drum Drying Machines. Our team of experienced technicians and engineers are available to provide:
We also offer training and on-site assistance to ensure that your Drum Drying Machine is installed, operated and maintained properly and safely. Contact us today to discuss your technical support and service requirements.
The Drum Drying Machine is packaged in a wooden box, lined with foam, to ensure the machine is protected from damage during shipping. The box is then sealed with packing tape and labeled with the shipping address.
Once packaged, the Drum Drying Machine is shipped via a reliable carrier. The carrier is responsible for tracking the package and ensuring it arrives at its destination safely and on time.
